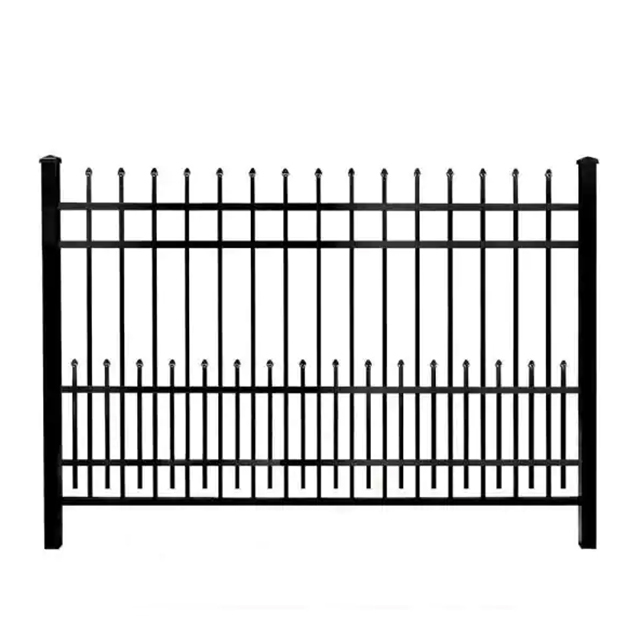

Zinc Steel fence

INTORDUCTION

Zinc steel fence is a high-performance security fencing system constructed from high-strength zinc alloy steel and finished with electrostatic spraying for superior corrosion resistance. It combines safety, modern design, and minimal maintenance requirements, making it an ideal choice for residential compounds, industrial parks, and municipal projects.

COLOR AVAILABLE

POPULAR COLOR IN MARKET

STEEL TUBULAR FENCE COLOR AVAILABLE

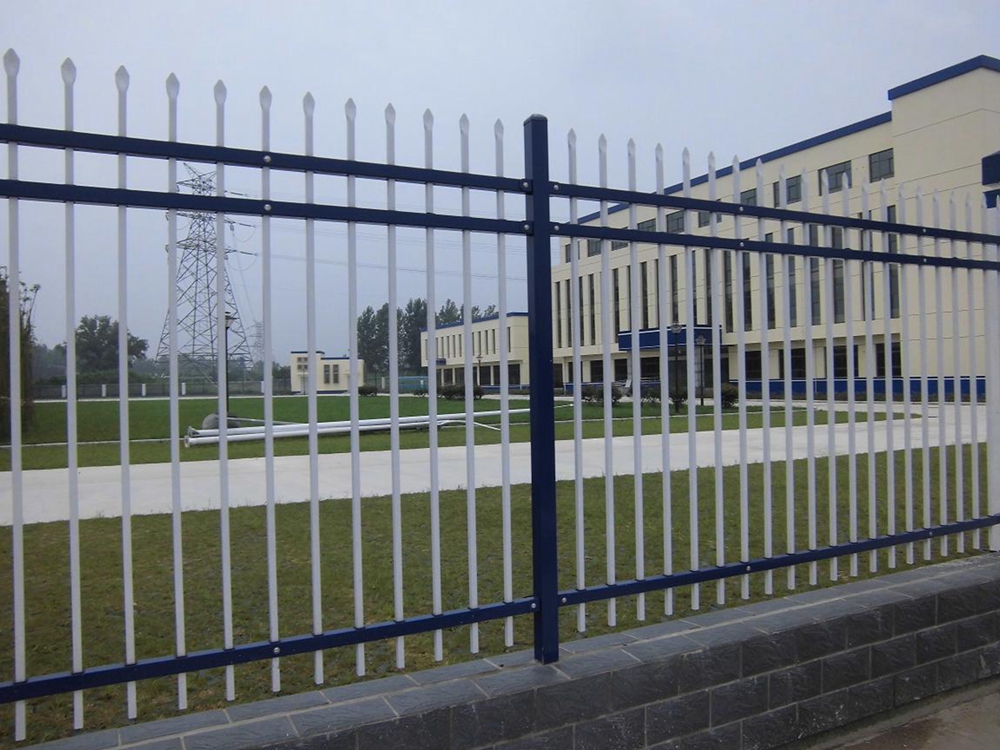

APPLICATION

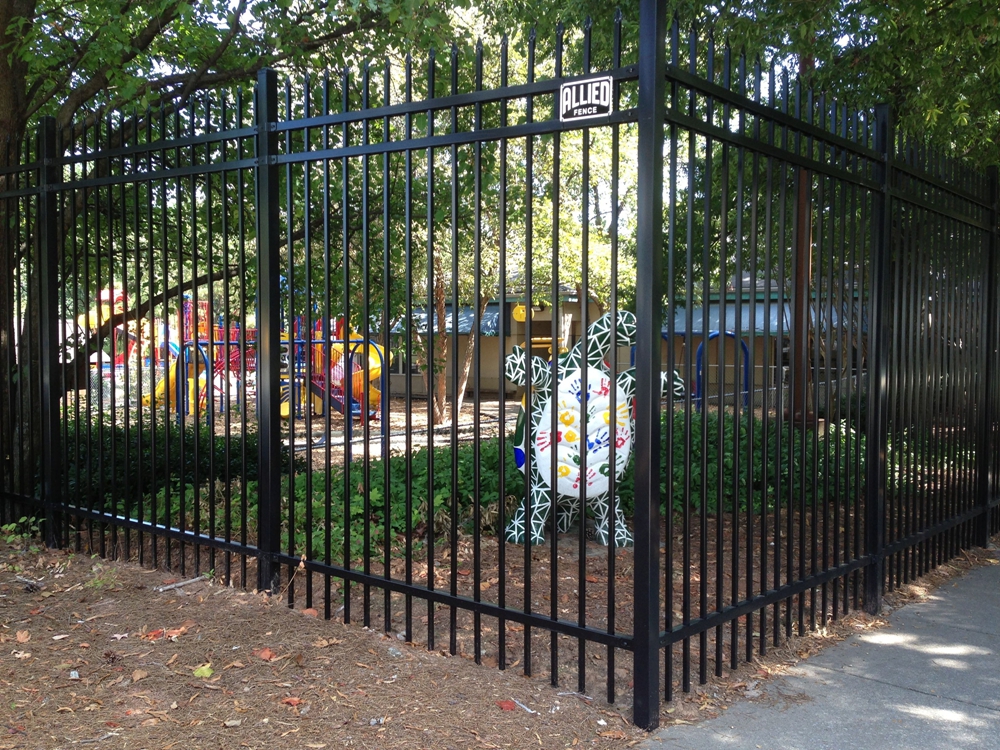

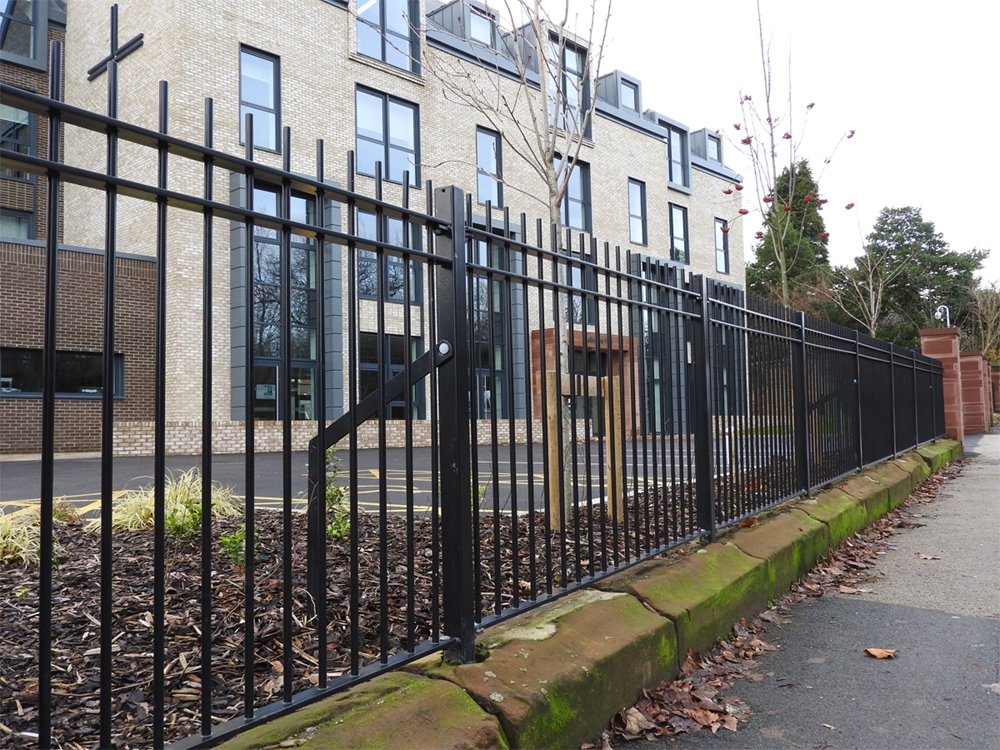

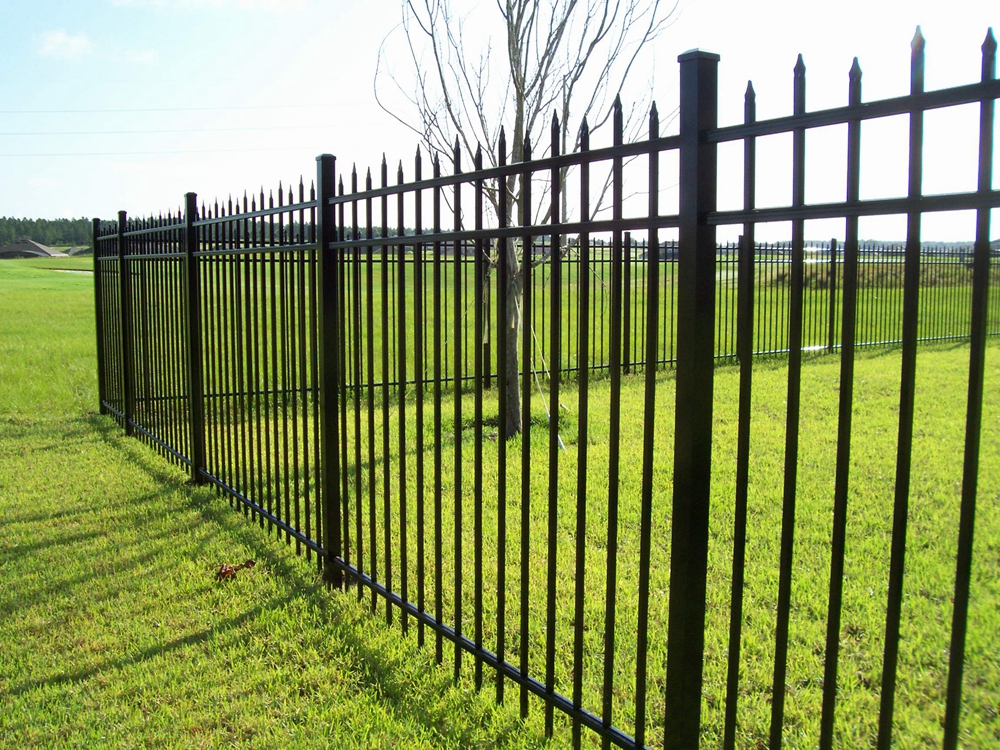

Residential Fencing Villa garden boundary, maintaining visual transparency Balcony/terrace guardrail, child-proof spacing (≤11cm)	Villa & Garden Fence Curved or stepped fencing, blending with landscaping Removable section for temporary vehicle access	School Perimeter pre-drilled for camera mounting Curved top rail + reflective strips, can double as bench	Industrial Facilities Weld  using stainless steel clips, anti-theft screws, or assemble with connectors No on-site welding.

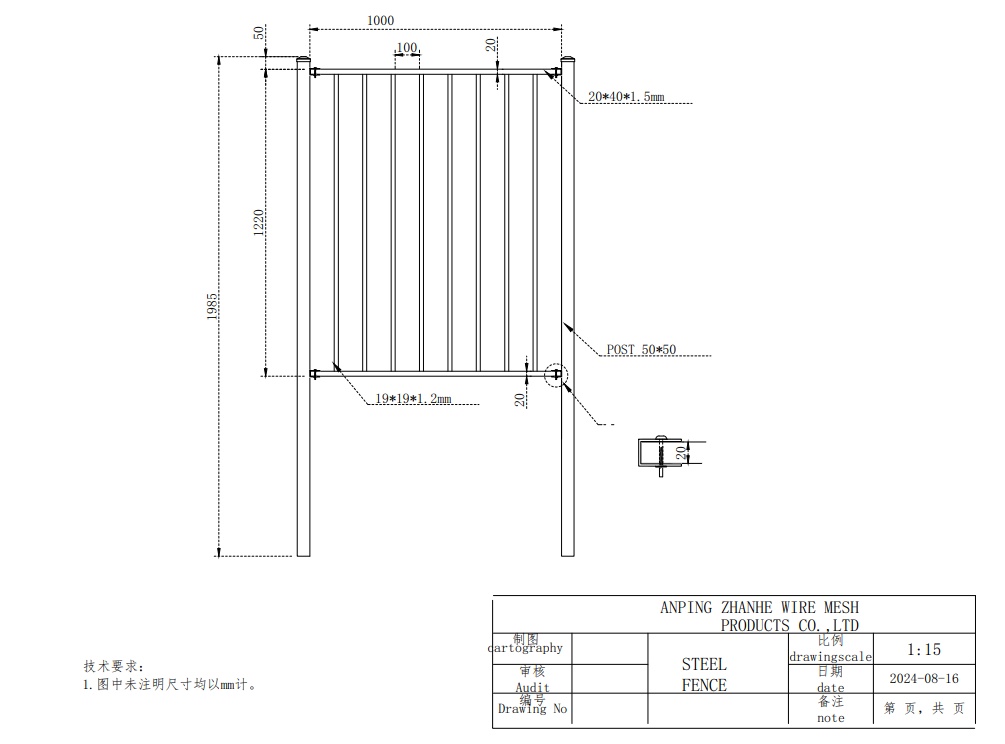

  B  WIDTH:WIDTH: 2000mm / 2400mm / 2900mm

  C   Vertical picket:  19*19MM/20*20mm thickness:0.8mm/1.0mm/1.2mm/1.5mm

  D   Vertical picket space:80mm/ 110mm/120mm Special distance is available

  E

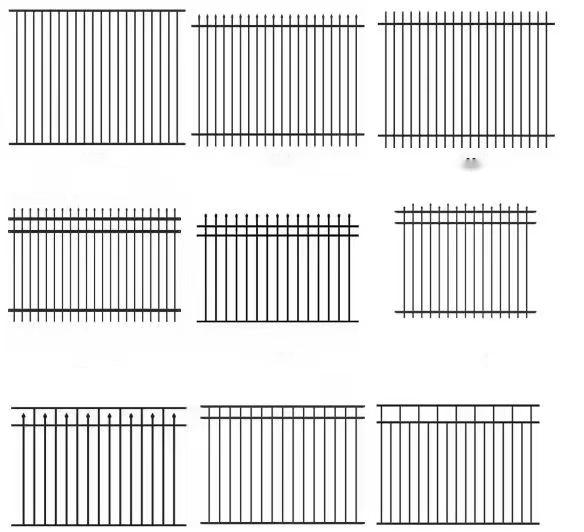

PIcket types: A: flat top option (Welded solution only)

 B: rod top option (Welded solution or  insllation solution )

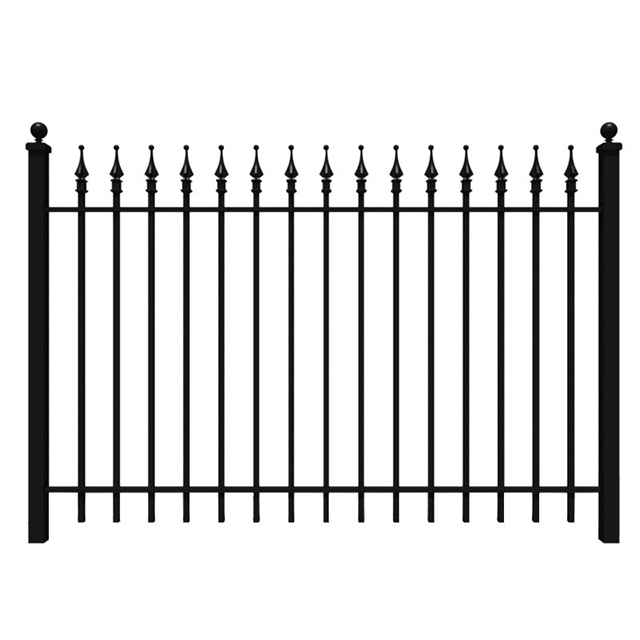

 C: spear top option (Welded solution or  insllation solution )

D: curved top option (Welded solution or  insllation solution )

  F   posts

A: Rectangle post: 40*60mm  B: Suare post: 50*50mm /60*60mm

SURFACE TREATMENT(ANTI-RUST TREATMENT):

1. Hot Dipped galvanized(40-60g/m²) + Polyester Powder Coated (All colors in Ral)
2. Hot dipped galvanized after black pipe welded

Step 1

GOODS:

1 panel

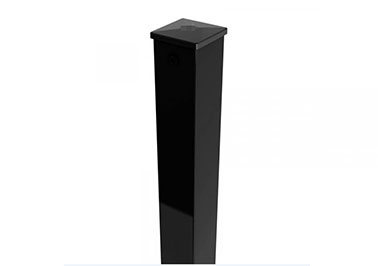

1 post with cap

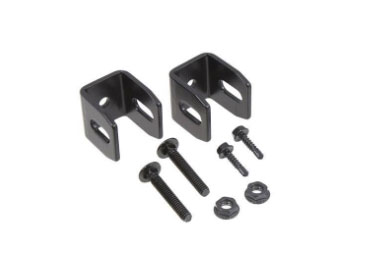

Clips

Step 2:Install the  Posts

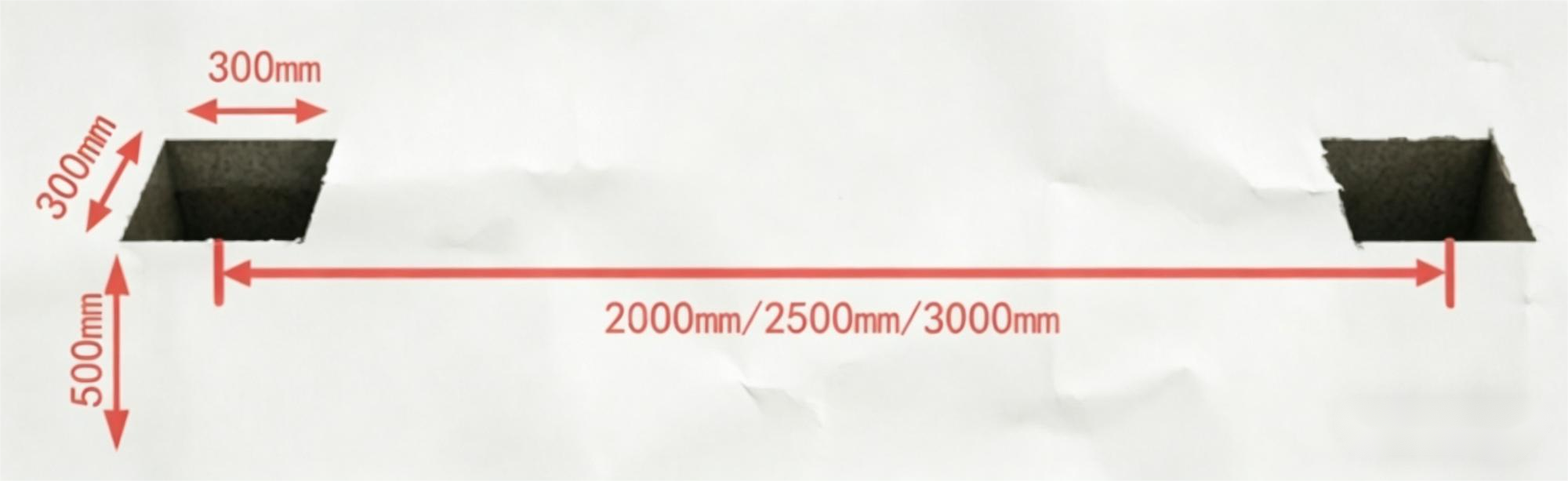

• Dig holes on the ground where the posts will be placed (about 60-100 cm deep), then place the metal posts in the holes, ensuring they are upright.
• Use cement to secure the posts in place.

Step 3:Attach the Fencing  panel

• Align the edges of the panel with the installed posts and connect the mesh to the posts.
• Use special clamps or connectors to secure the panelto the posts firmly. Adjust the height of the panel as needed.

Step 4: Check and Adjust

• After installation, ensure that the mesh is securely fixed to the posts. Use a spirit level to check that the posts and mesh are upright.
• If necessary, adjust the tightness of the connectors.

Step 5: Complete the Installation

• Finally, check the fence to make sure it is tightly secured, with no loose parts.
• If necessary, add decorative strips or other accessories to the top or bottom of the fence.
