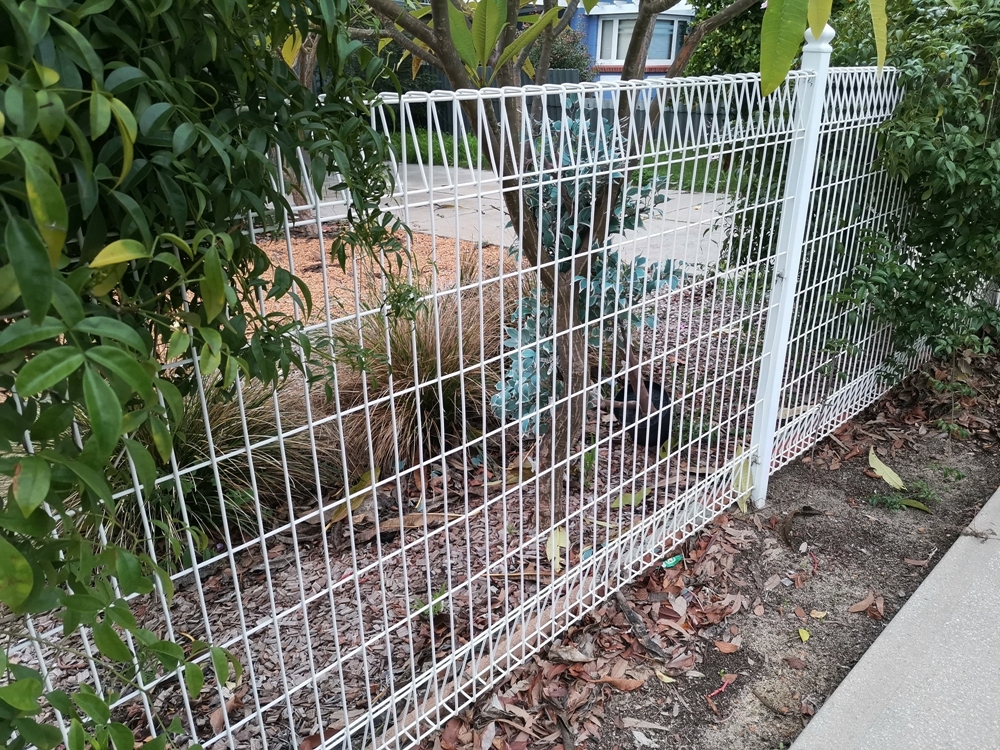

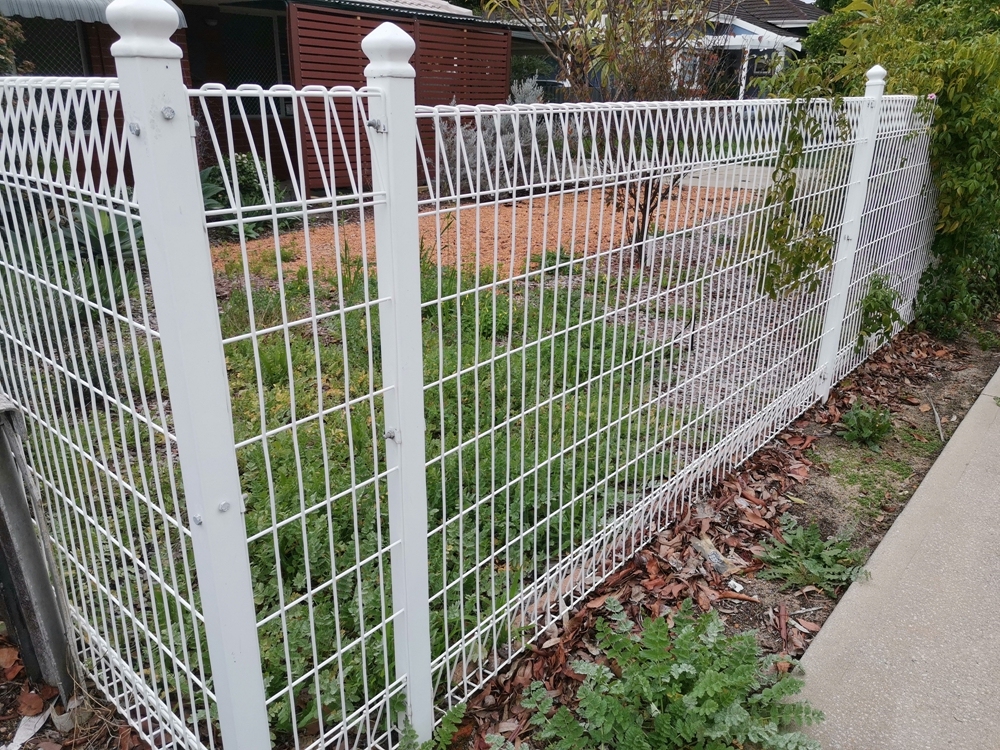

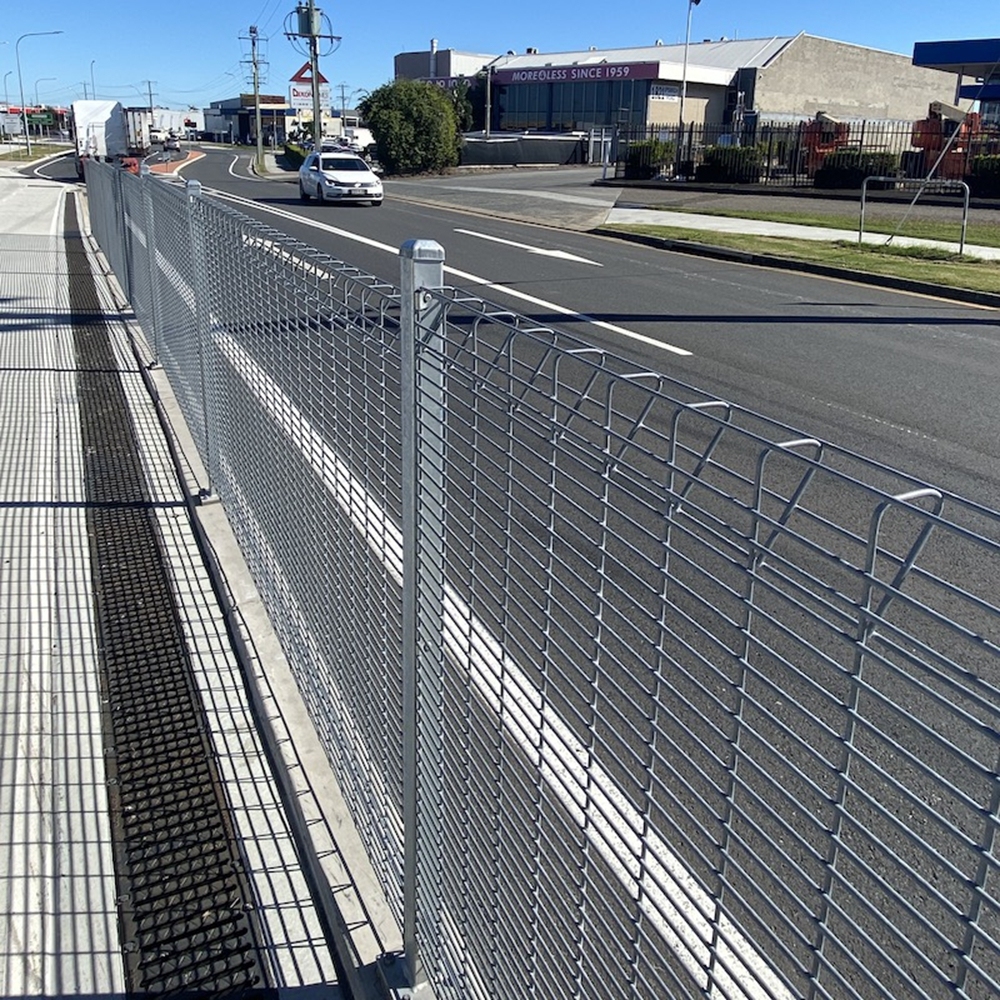

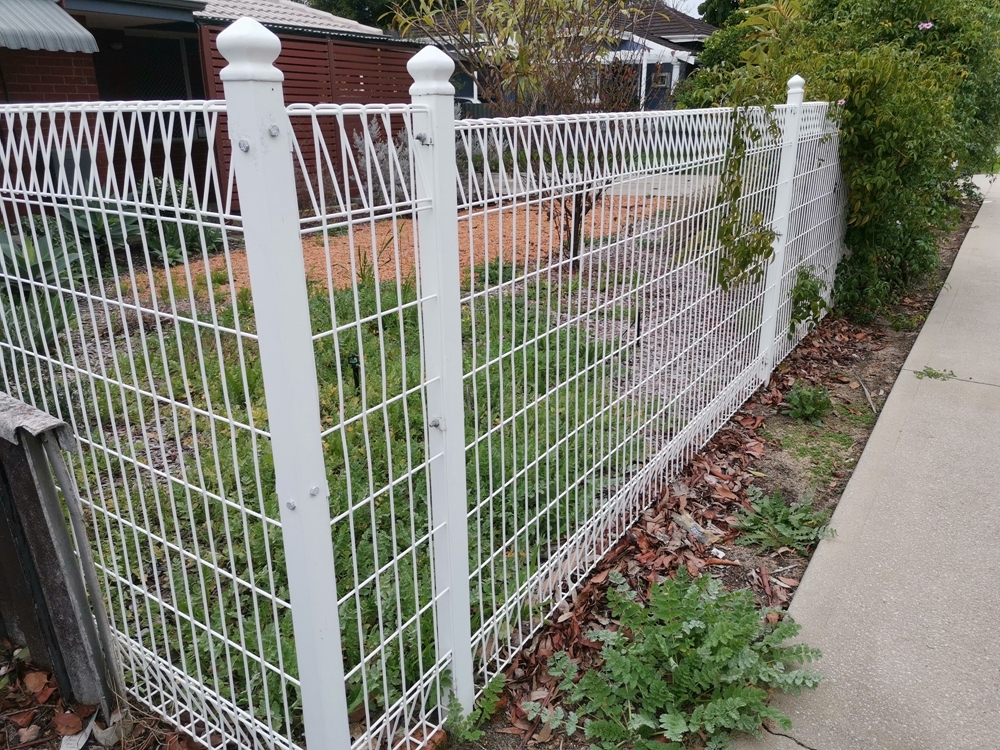

ROLL TOP FENCE(BRC FENCE)

INTORDUCTION

ROLL TOP FENCE features a fully rounded top edge with no protruding points, offering a clean and safe profile for public environments. Its rolled wire and reinforced mesh structure provide good rigidity while remaining visually open.

COLOR AVAILABLE

POPULAR COLOR IN MARKET

ROLL TOP  FENCE COLOR AVAILABLE

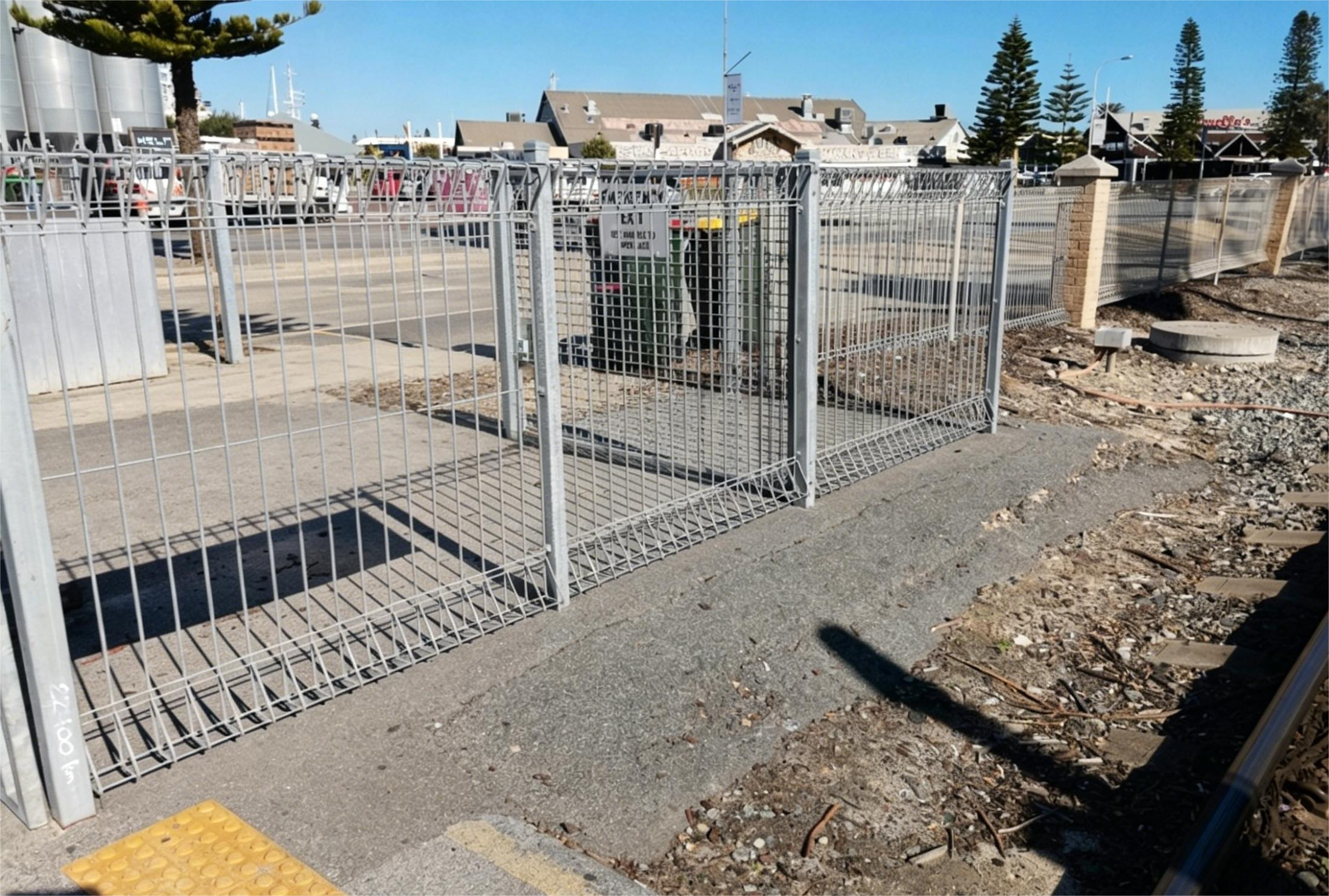

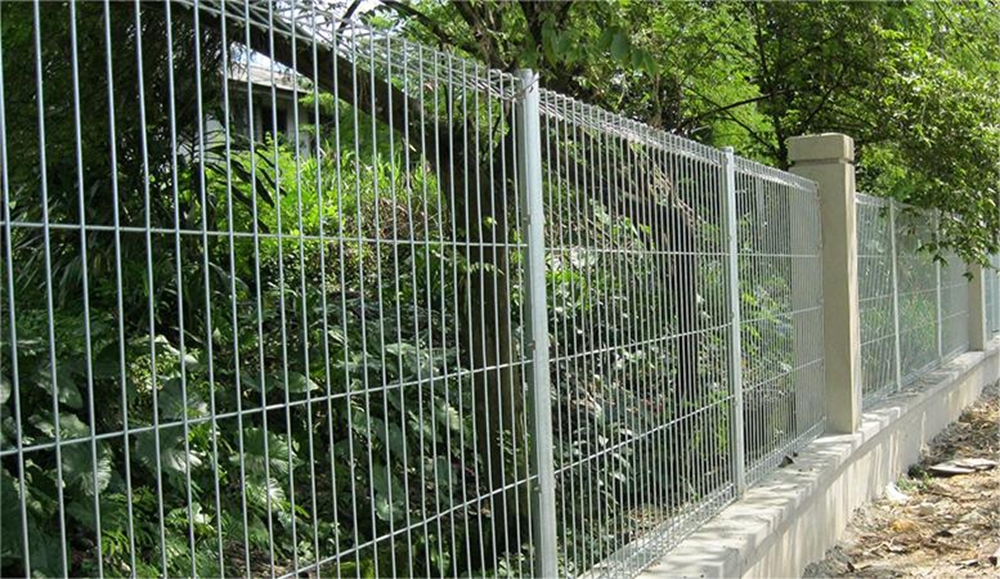

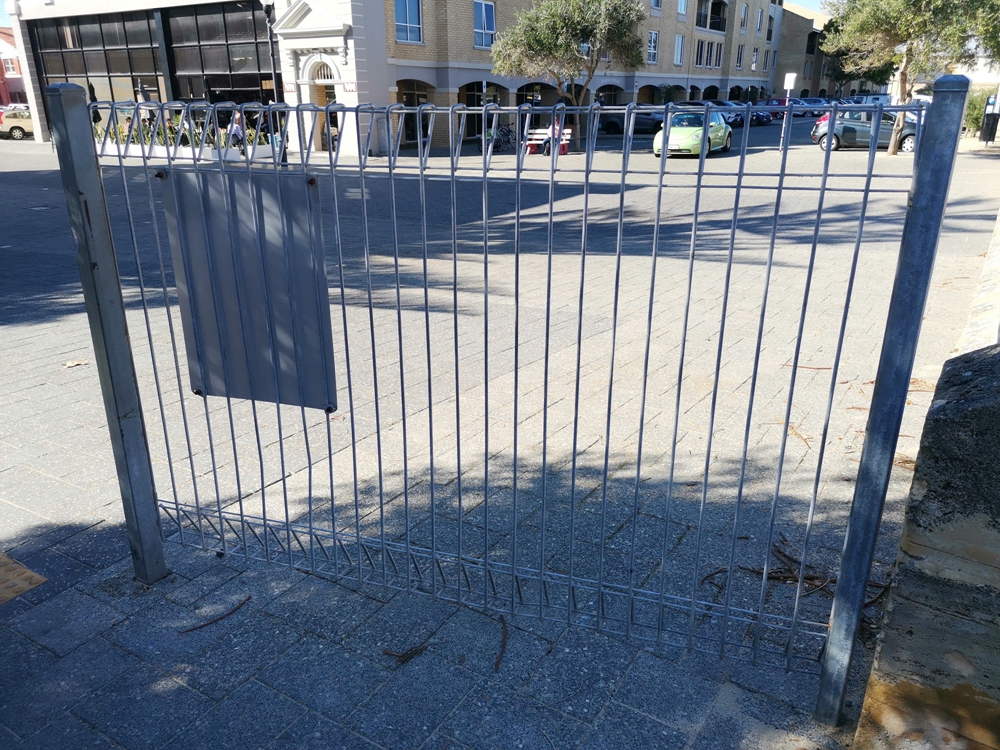

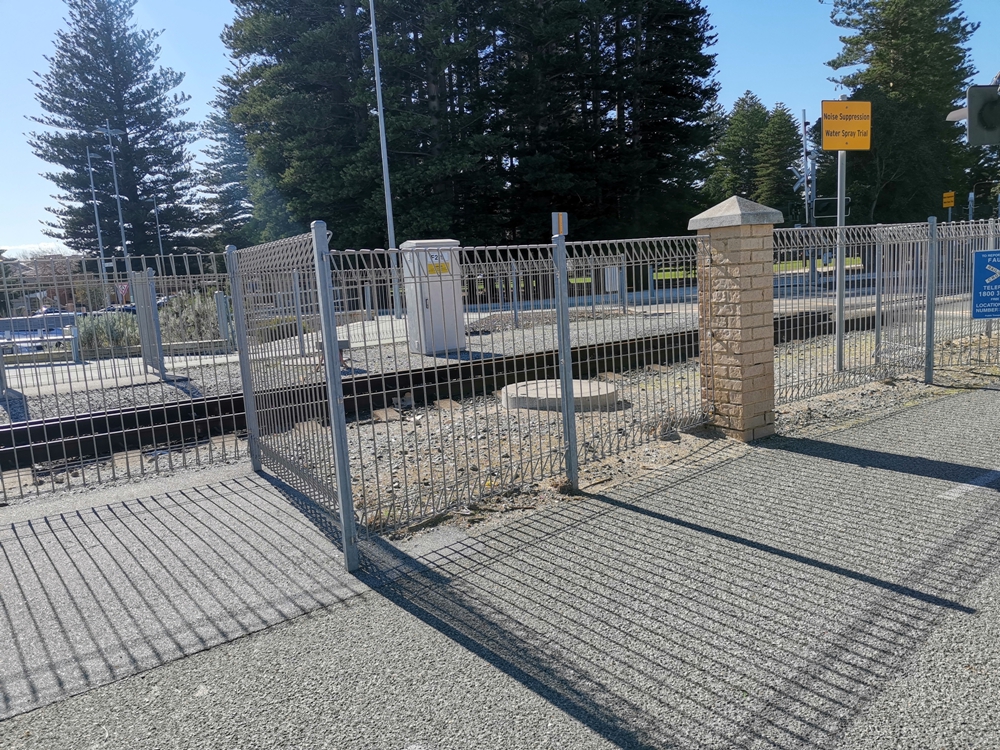

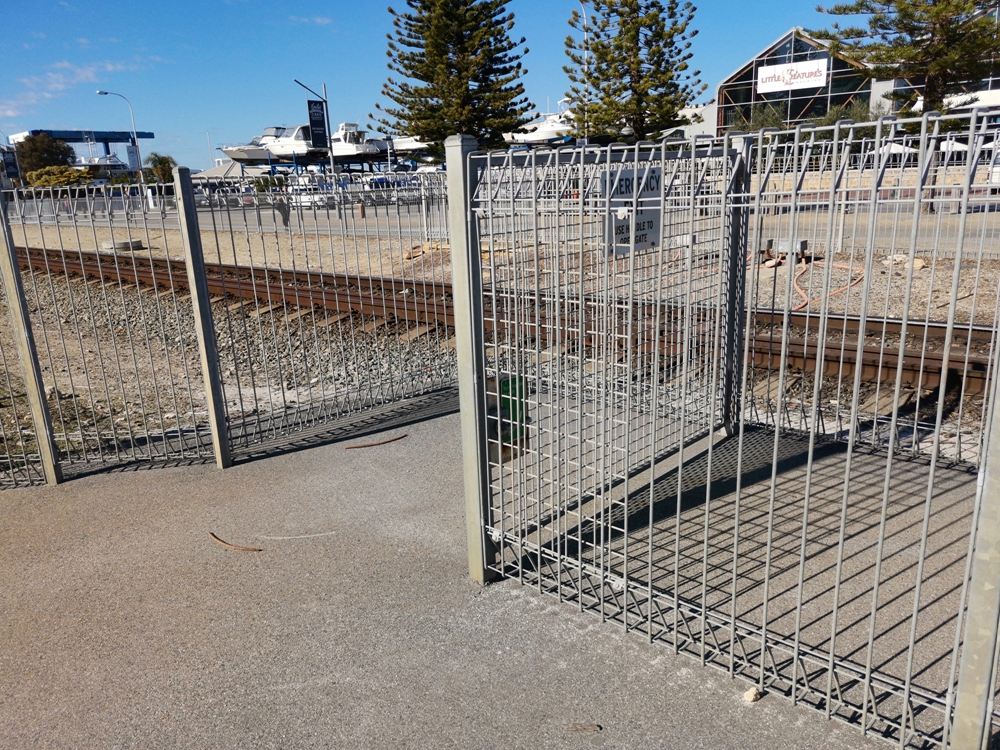

APPLICATION

Residential homes & communities Provides safe boundary definition without sharp edges, ideal for family living environments.	Warehouses & logistics Offers durable perimeter security while maintaining visibility for site monitoring.	Commercial buildings Enhances property protection with a professional and clean appearance.

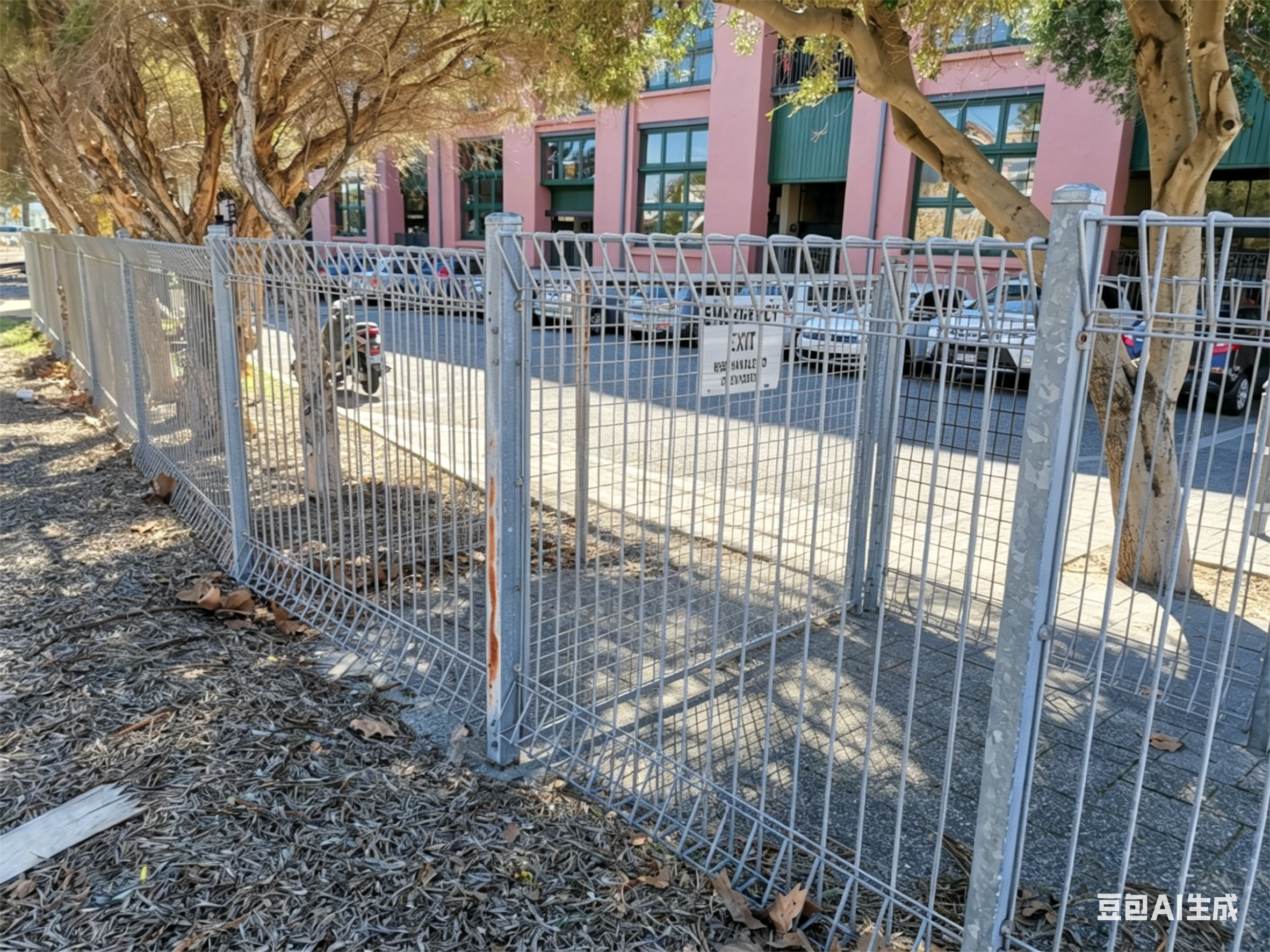

Residential gardens Protects planting areas without compromising visual openness.	Schools & playgrounds Rounded top design ensures child safety while providing reliable enclosure.	Parks & public areas Balances security and aesthetics, suitable for high-footfall public spaces.

  B   WIDTH: 2000mm / 2200mm / 2400mm/2500mm/3000mm          3000mm option can reduce installation post cost

  C   WIRE THICKNESS: 4.0mm / 4.5mm / 5.0mm /6.0mmmore thicker wire can offer stronger rigid

         MESH SIZE: 50 × 150 mm, 75 × 150 mm

  D   Popular bending method

A: 50mm

B: 75mm

  E

POST: 1: Rectangle post: 40*60mm

2: Square post: 60*60mm

  F   posts

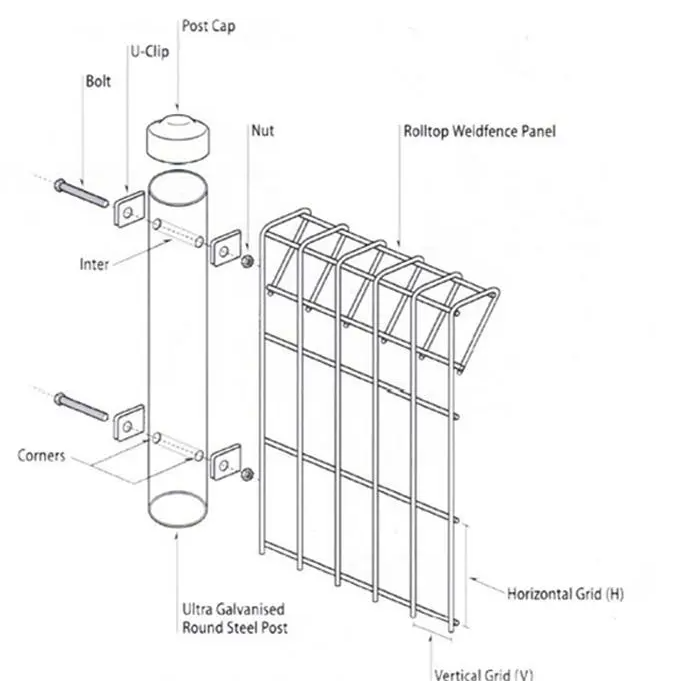

CONNECTIONS

U CLIPS,STEEL CLAMPS

SURFACE TREATMENT(ANTI-RUST TREATMENT):

1. Electric Galvanized(6-12g/m²) + Powder Coated
2. Electric Galvanized(6-12g/m²) + PVC Coated
3. Hot Dipped galvanized(40-60g/m²) + Powder Coated
4. Hot Dipped galvanized(40-60g/m²) + PVC Coated
5. Hot Dipped Galvanized after welding (More than 200g/m²)
6. Galfan(200g/m²) + Polyester Powder Coated (All colors in Ral) G. Galfan(200g/m²) + PVC Coated

Installation Steps

Prepare Materials and Tools

• Materials:Fencing gate mesh, metal posts, connectors (such as bolts), bases, and brackets，gate lock.

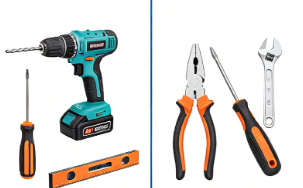

• Tools:Screwdriver, electric drill, pliers, spirit level, etc.

Step 1: Install the gate Posts

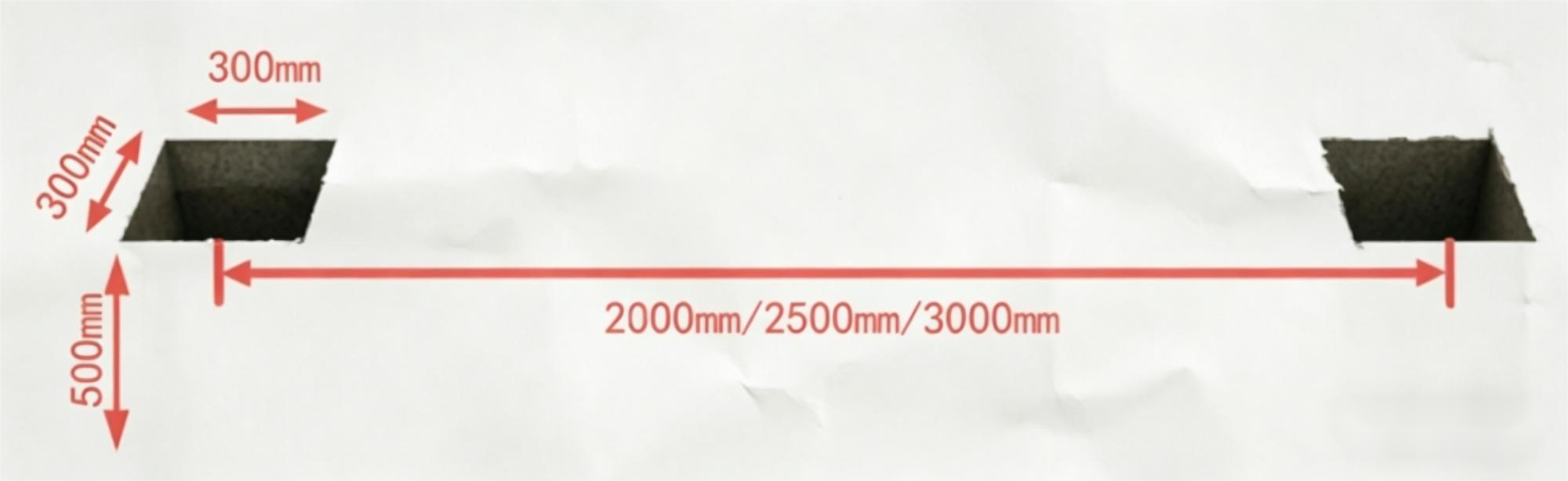

1. Layout and Excavation: Measure and mark post locations strictly according to panel width, then excavate post holes.
2. Post Specifications: Generally, posts should be 500mm longer than the panel height to accommodate burial. The

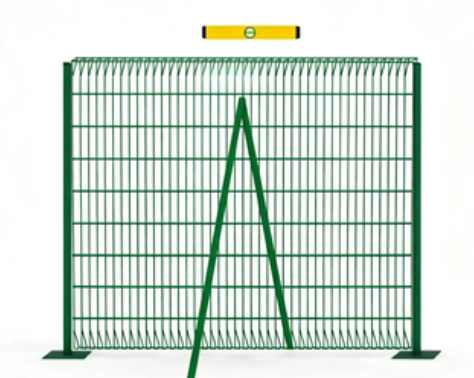

Step 2: Install posts in concrete foundations, ensuring precise vertical alignment (plumb).

Posts shall be set in concrete and maintained in a perfectly plumb position during curing.

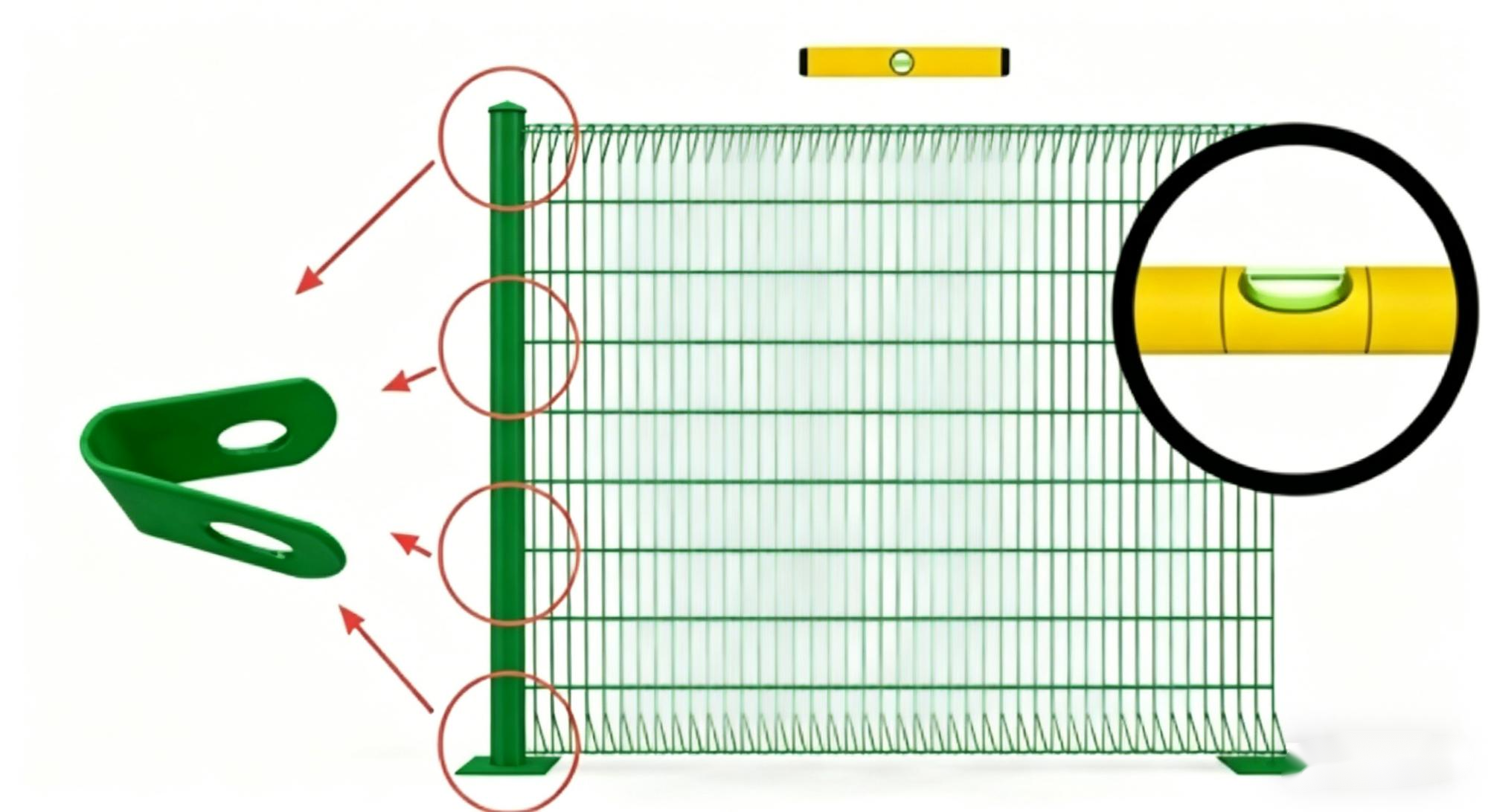

Step 3:Install 1 panel to post with u clips

Step 4: Secure the second post using a concrete foundation. Ensure strict vertical alignment (plumb) is maintained throughout the curing process

Step 5: Secure the fence panels. Allow the concrete to cure fully for several hours before proceeding.
