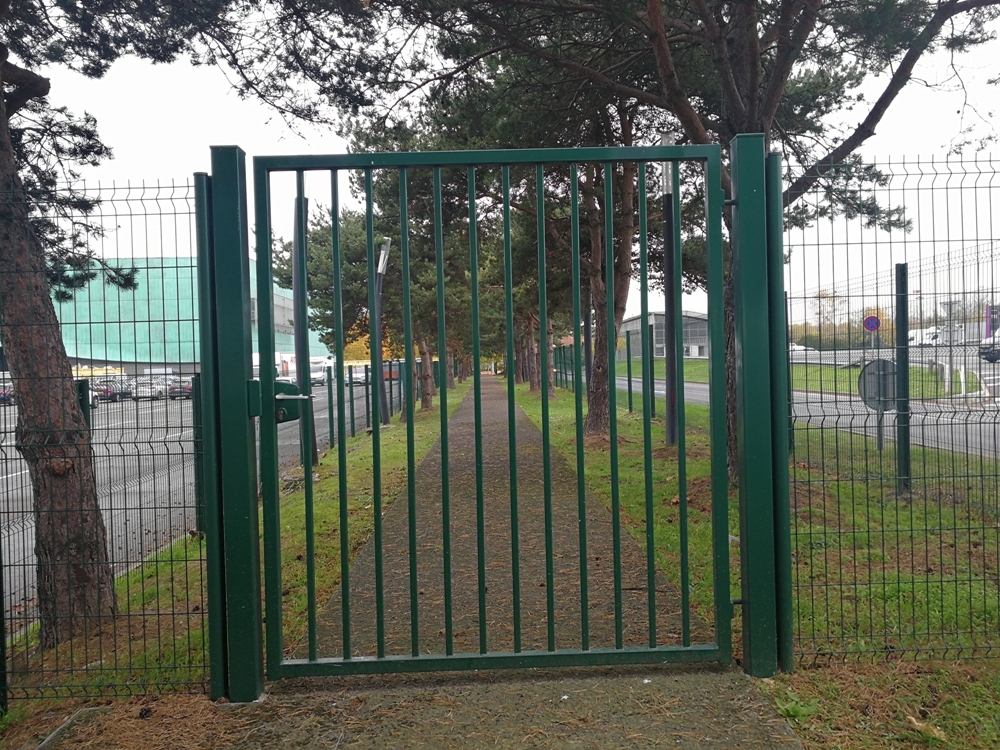

FENCE GATES

INTORDUCTION

Engineered for safety, security, and operational convenience, our gate systems provide reliable access solutions for a variety of fencing applications. Offered in single-leaf, double-leaf, and sliding configurations, the gates are fabricated using either welded wire mesh or tubular infill. Their robust design supports diverse use cases, including residential boundaries, industrial facilities, construction areas, and commercial estates.

COLOR AVAILABLE

POPULAR COLOR IN MARKET

WELDED FENCE COLOR AVAILABLE

APPLICATION

Typical Applications

Residential communities – Secure access control with customizable gate sizes and quiet sliding options for pedestrian and vehicle flow.	Industrial sites and factories – Heavy-duty recycled steel construction with anti-rust coating, designed to withstand harsh environments and high-traffic vehicle entry	Commercial facilities – Aesthetic yet secure double-leaf or sliding gates with reliable locking mechanisms for after-hours perimeter protection.	Construction perimeters – Quick-to-install, temporary or semi-permanent gate solutions with weather-resistant finishes and flexible opening styles.	Construction perimeters – Quick-to-install, temporary or semi-permanent gate solutions with weather-resistant finishes and flexible opening styles.

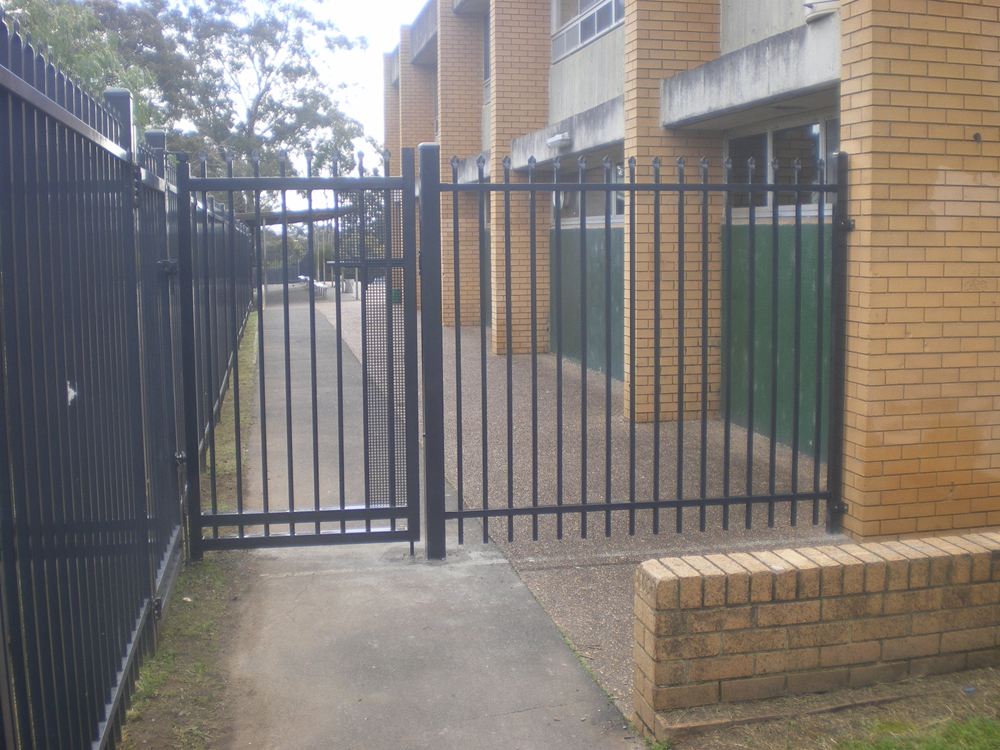

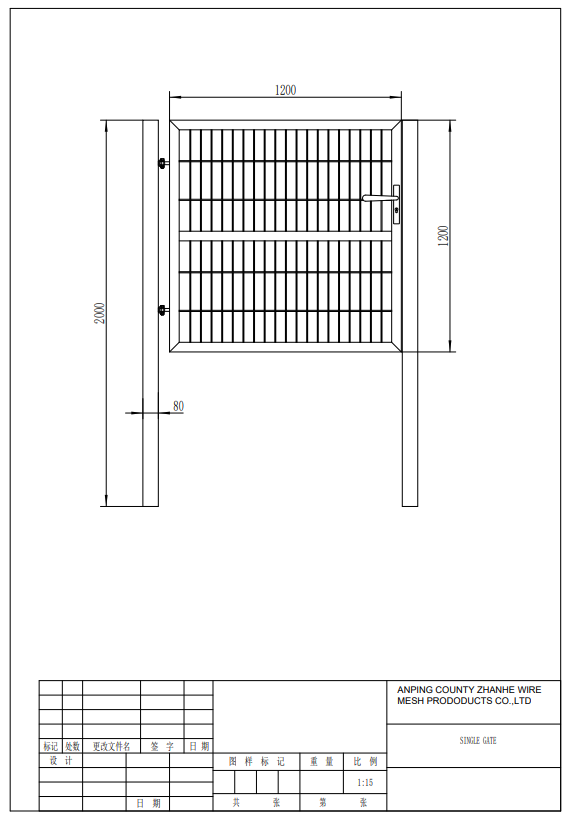

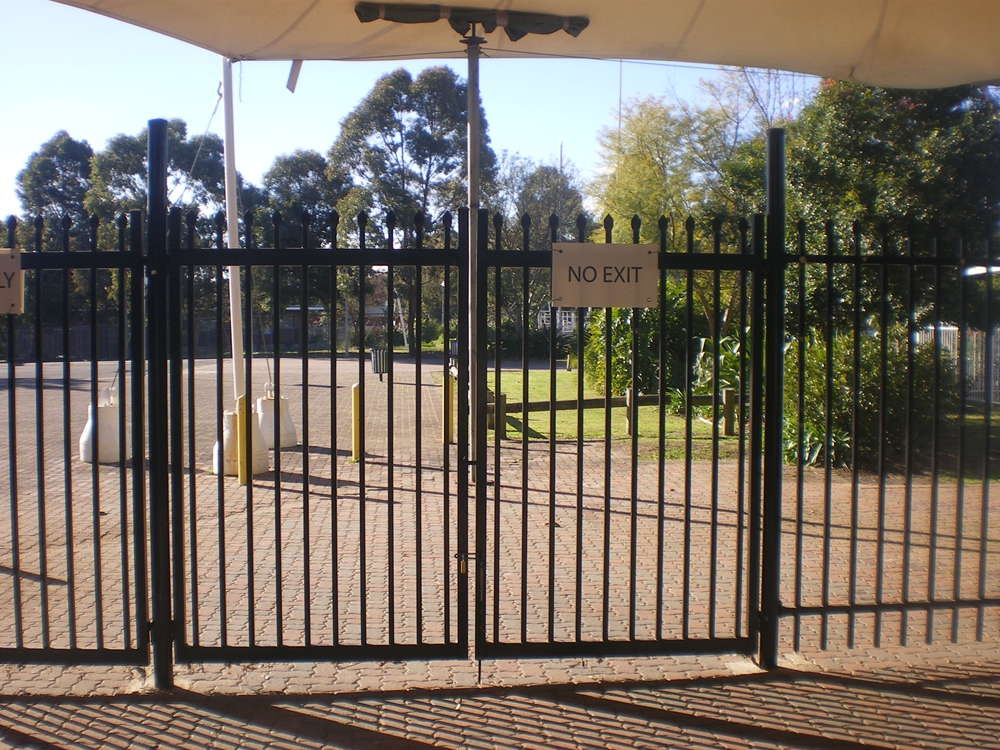

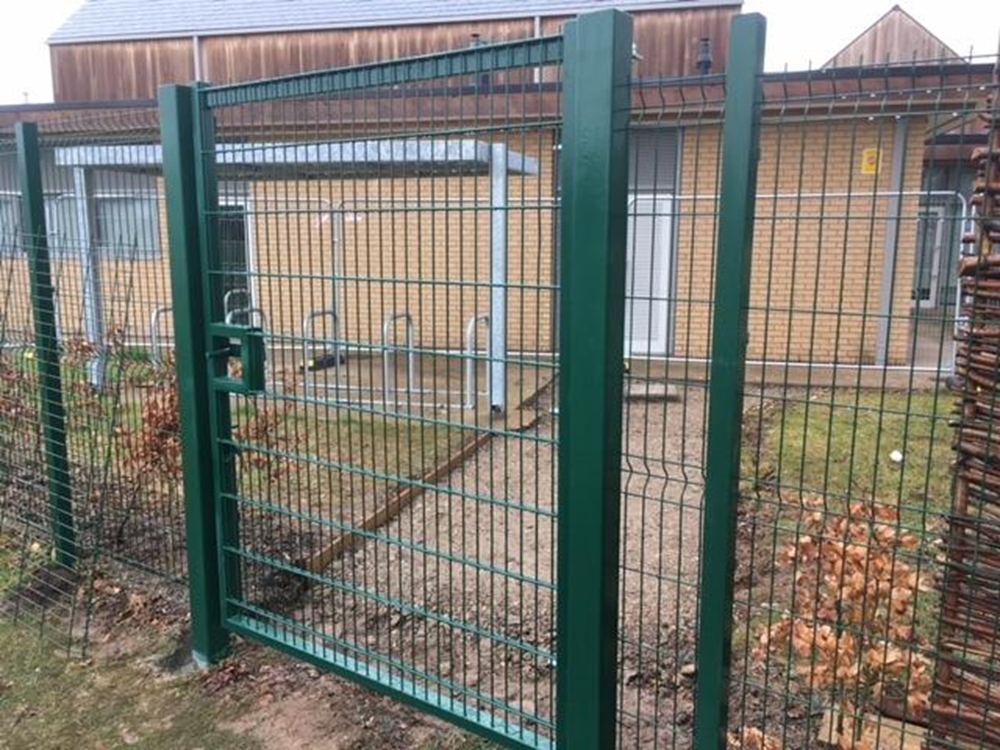

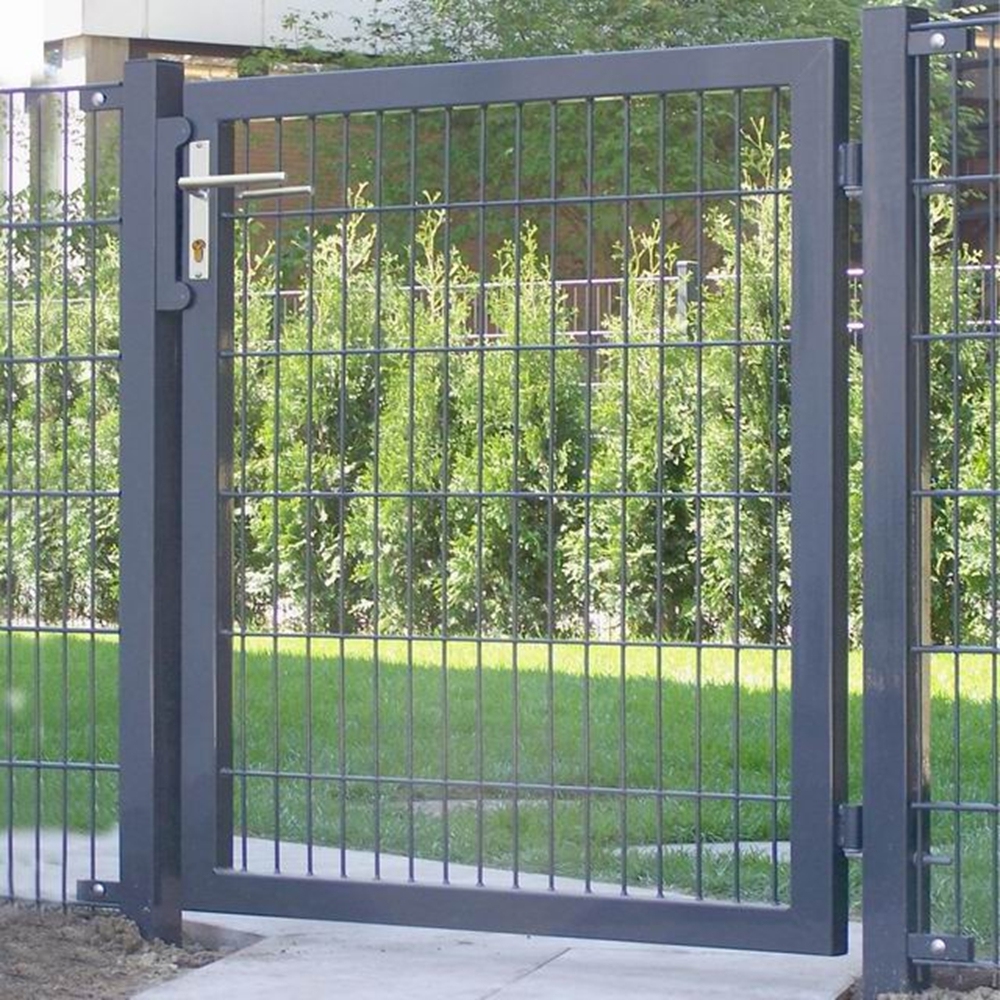

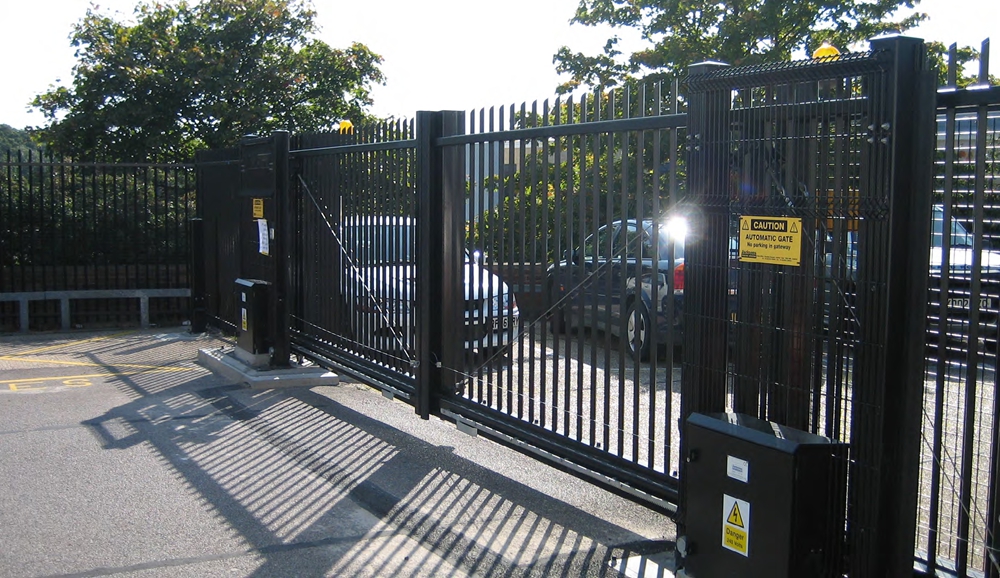

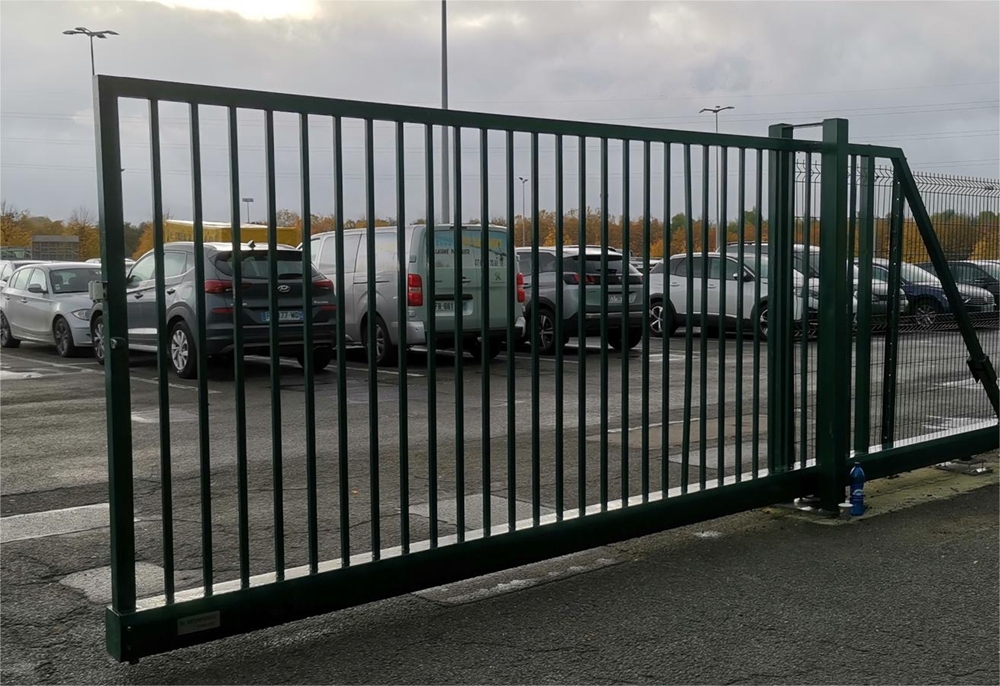

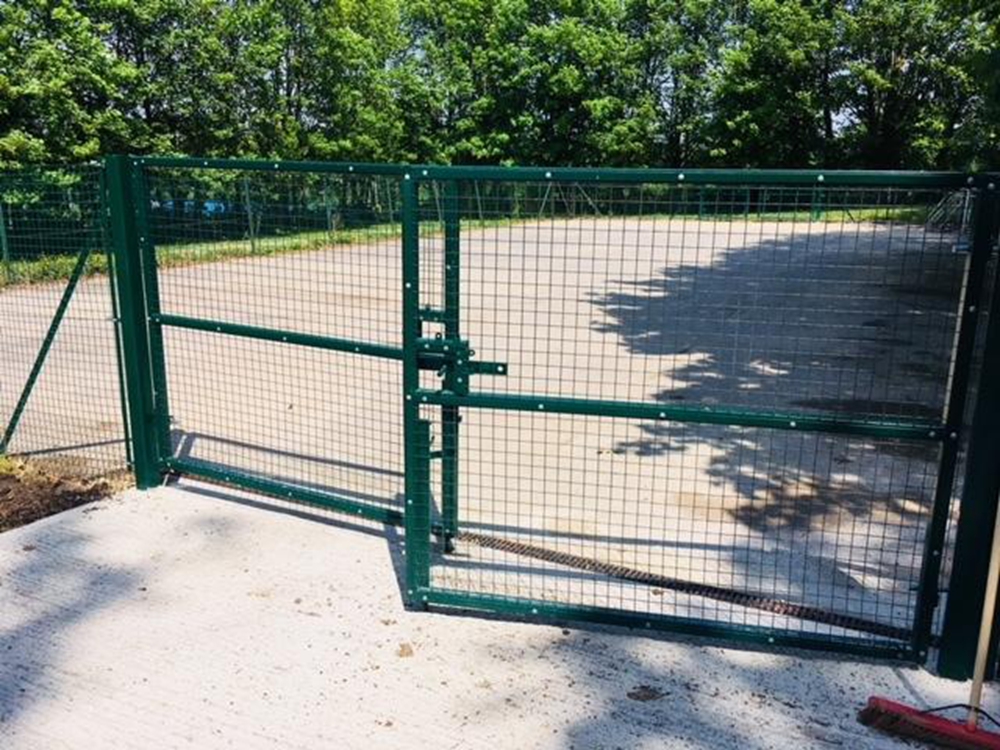

SINGLE GATE/DOUBLE GATE/SLIDING GATE

  A  Height: 1.0 m / 1.2 m / 1.5 m / 1.8 m / 2.0 m / 2.2 m / 2.4 m

  B  Width:1.0/1.2/1.5/2.0/3.0/4.0/6.0/7.0m

  C  WIRE THICKNESS: 4.0mm / 4.5mm / 5.0mm more thicker wire can offer stronger rigid

 MESH SIZE: 50*100mm/50 × 100 mm, 50 × 200 mm, 55 × 200 mm, 75 × 150 mm, 100 × 300 mm

  D  Frame:Round Pipe: ɸ40 × 2.0 mm , Rectangular Pipe: 40 × 60 × 1.5 / 2.0 mm,  Square pipw50 × 50 × 1.5 / 2.0 mm

  E  POST:
1: Rectangle post: 40*60mm
2: Square post: 60*60mm,80*80mm,100*100mm
3: Round post: φ60mm ,φ75mm

  F  SURFACE TREATMENT(ANTI-RUST TREATMENT):

1. Electric Galvanized(6-12g/m²) + Powder Coated

2. Electric Galvanized(6-12g/m²) + PVC Coated

3. Hot Dipped galvanized(40-60g/m²) + Powder Coated

4. Hot Dipped galvanized(40-60g/m²) + PVC Coated

5. Hot Dipped Galvanized after welding (More than 200g/m²)

6. Galfan(200g/m²) + Polyester Powder Coated (All colors in Ral) G. Galfan(200g/m²) + PVC Coated

Installation Steps

Prepare Materials and Tools

• Materials: Fencing gate mesh, metal posts, connectors (such as bolts), bases, and brackets，gate lock.
• Tools: Screwdriver, electric drill, pliers, spirit level, etc.

Step 1: Install the gate Posts

• Dig holes on the ground where the posts will be placed (about 60-100 cm deep), then place the metal posts in the holes, ensuring they are upright.
• Use cement to secure the posts in place.



Step 2: Attach the Fencing gate panel

• Align the edges of the gate panelwith the installed posts and connect the mesh to the posts.
• Use special clamps or connectors to secure the mesh to the posts firmly. Adjust the height of the mesh as needed.

Step 3: Secure Each Mesh Section

• At each connection point, use bolts, hooks, or other connectors to ensure the stability of the mesh.

Step 4: Check and Adjust

• After installation, ensure that the mesh is securely fixed to the posts. Use a spirit level to check that the posts and mesh are upright.
• If necessary, adjust the tightness of the connectors.

Step 5: Complete the Installation

• Finally, check the fence to make sure it is tightly secured, with no loose parts.
• If necessary, add decorative strips or other accessories to the top or bottom of the fence.
