3D FENCE

INTORDUCTION

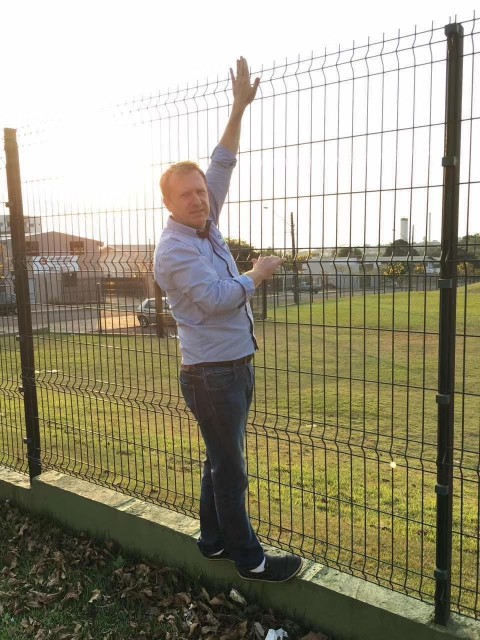

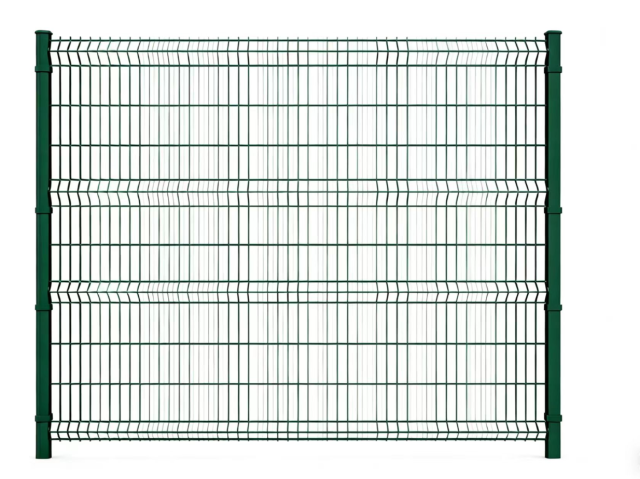

the triangle bend fence is a welded mesh fencing system reinforced with a distinctive triangular bending profile, significantly improving impact resistance and overall rigidity. Made of high-tensile cold-drawn steel wires and available with hot-dip galvanized, powder-coated, or PVC-coated finishes, it offers excellent corrosion resistance and long-lasting durability. Its unique triangular bend design not only enhances structural stability but also provides a modern, neat appearance. Additionally, the modular design and quick assembly system greatly reduce transportation and installation costs, making it an ideal choice for perimeter protection in industrial parks, residential areas, airports, and public spaces.

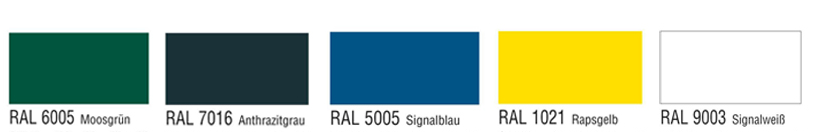

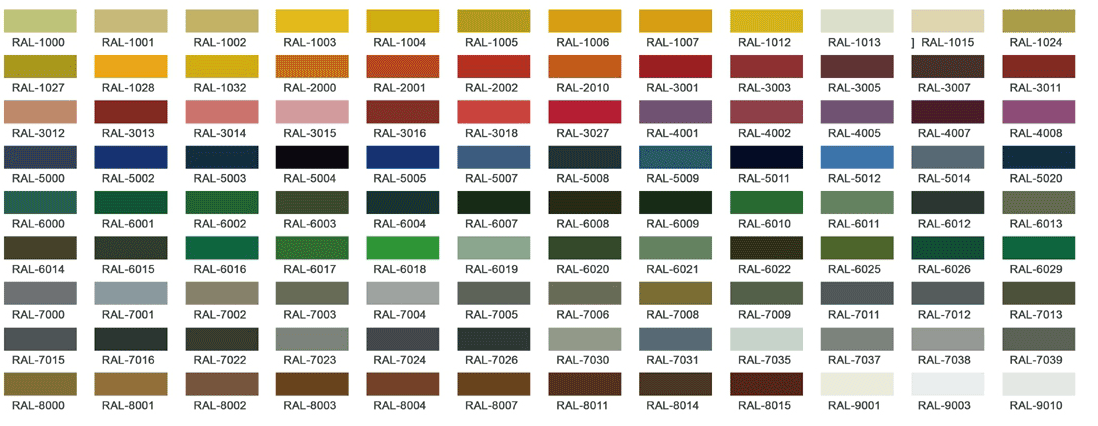

COLOR AVAILABLE

POPULAR COLOR IN MARKET

WELDED FENCE COLOR AVAILABLE

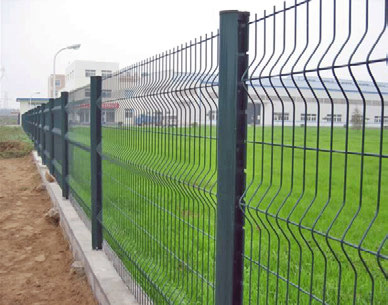

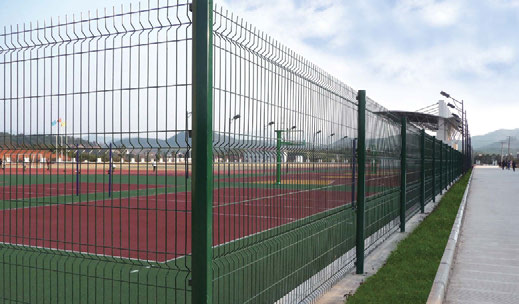

APPLICATION

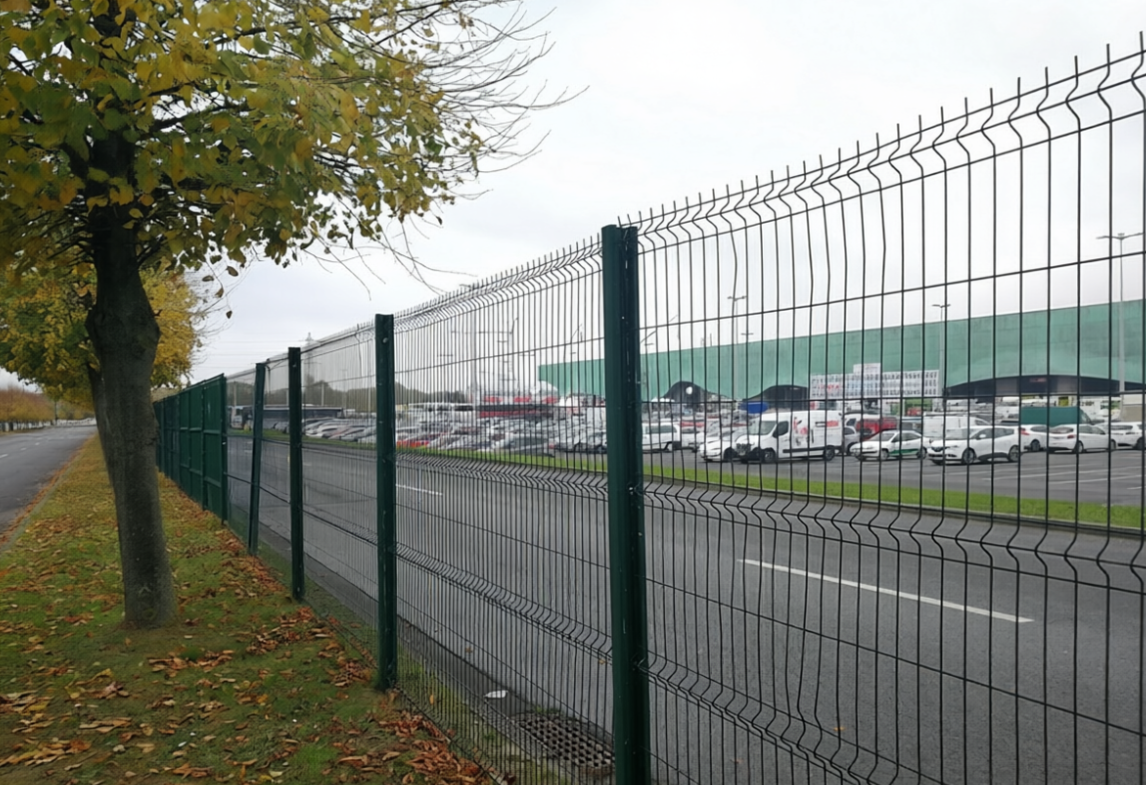

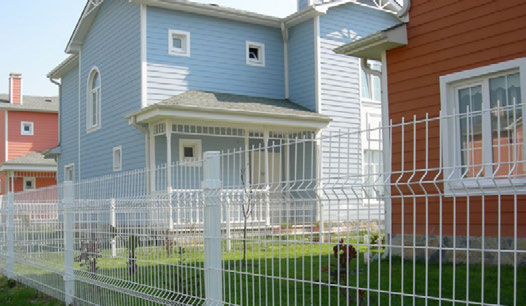

Residential Villas & Communities – The unique V-shape structure not only boosts impact resistance but also elevates the visual appeal of upscale housing with its sleek design.	Factories & Logistics Parks – Provides rigid perimeter protection capable of withstanding harsh weather and external pressure, ensuring secure isolation for industrial and storage zones.	Municipal Greenbelts & Landscapes – Allows for unobstructed views of the cityscape while serving as a boundary for green belts, preventing trampling without compromising aesthetics.	Transportation Hubs & Parking Lots – Ideal for large-scale zoning; modular installation is quick and efficient, providing clear boundaries for vehicle parking and crowd guidance

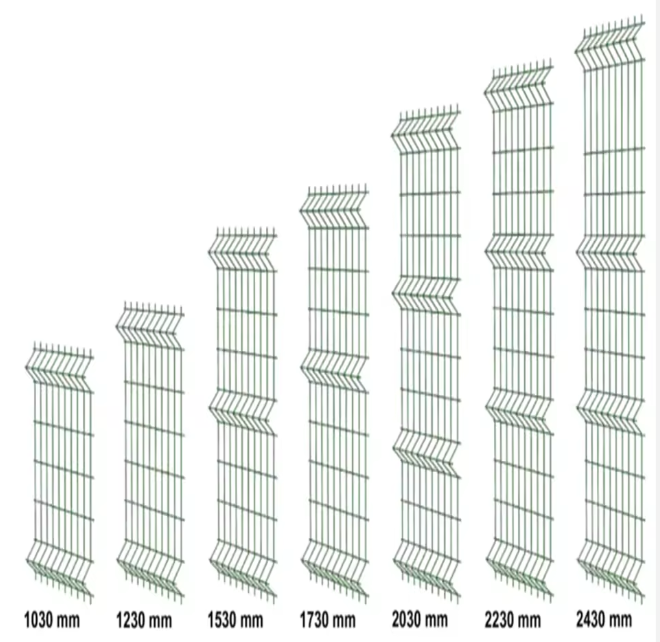

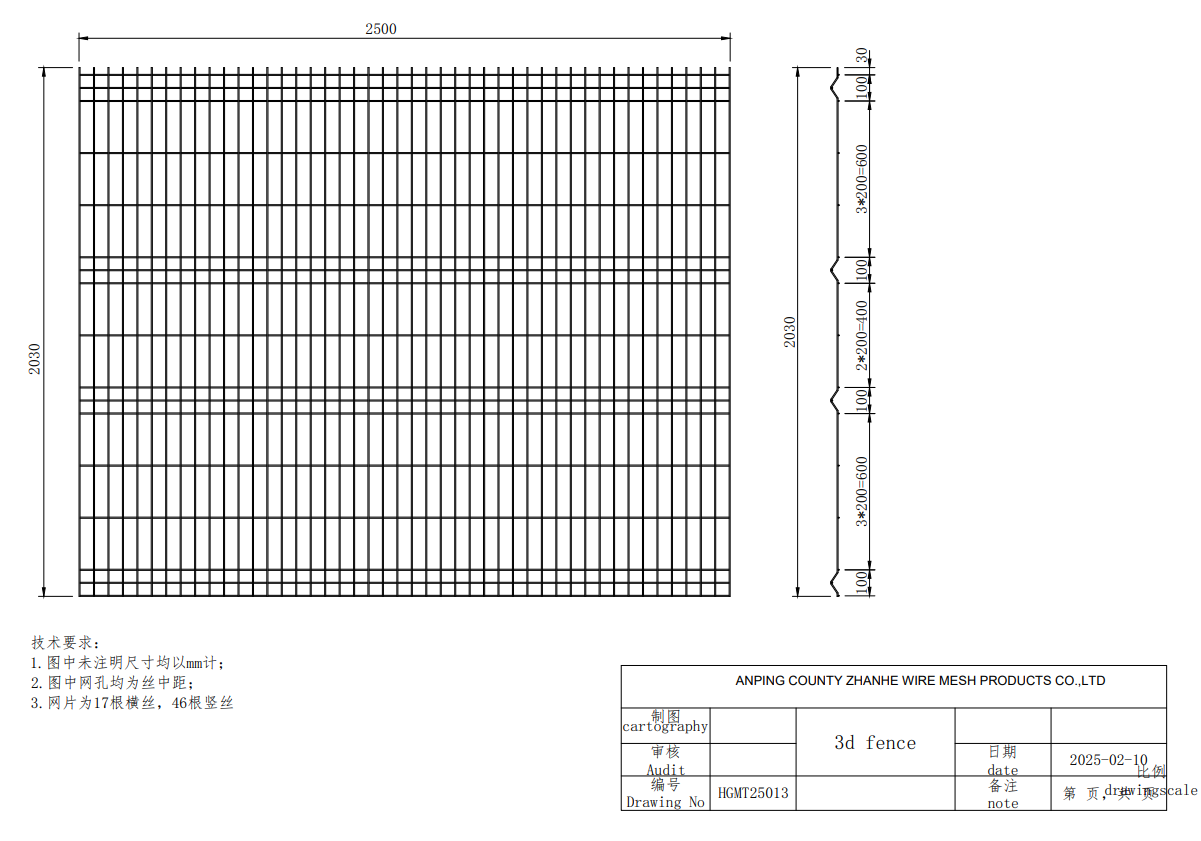

  A  HEIGHT:1030mm / 1230mm / 1430mm / 1630mm / 1830mm / 2030mm / 2230mm The panels have vertical barbs of 30mm on one side and are reversible (barbs at top or at bottom). The heavy wires guarantee strength and rigidity.

  B  WIDTH: 2000mm / 2200mm / 2500mm/3000mm

3000mm option can reduce installation post cost

  C  WIRE THICKNESS: 4.0mm / 4.5mm / 5.0mm more thicker wire can offer stronger rigid

MESH SIZE: 50*100mm/50 × 100 mm, 50 × 200 mm, 55 × 200 mm, 75 × 150 mm, 100 × 300 mm

  D  Popular bending method

A: 100mm

B: 200mm

C: 200mm without regid wire

D: 100mm with 2 regid wire

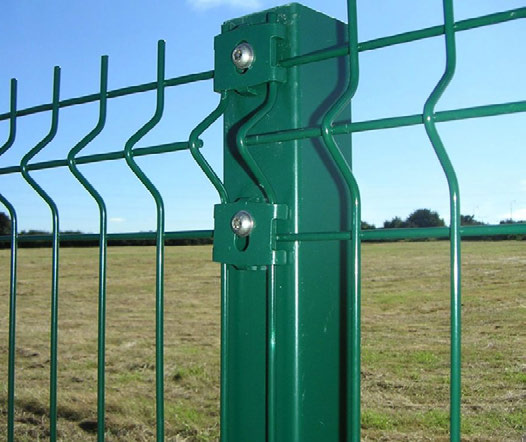

  E  POST:

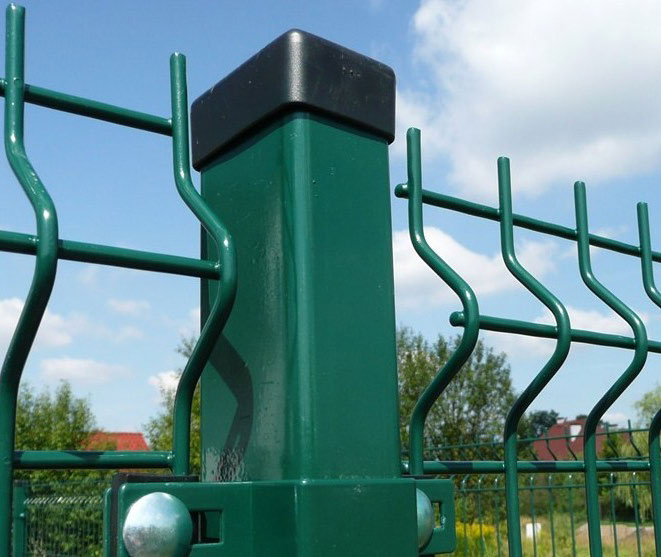

1: Rectangle post: 40*60mm

2: Square post: 60*60mm

3: Round post: φ60mm

4: "I " post: 70*44mm  (Double Quantity Clamps)

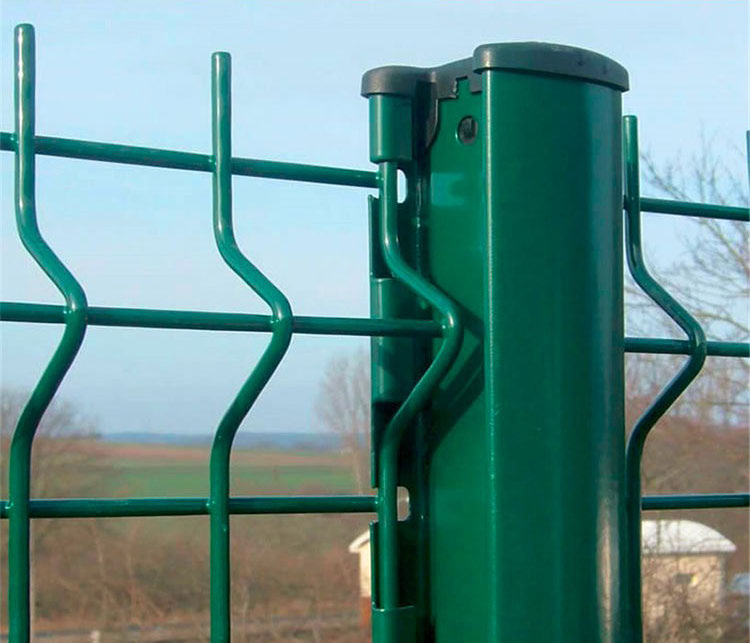

5: Peach post: 50*70mm & 70*100mm

  F  CONNECTIONS

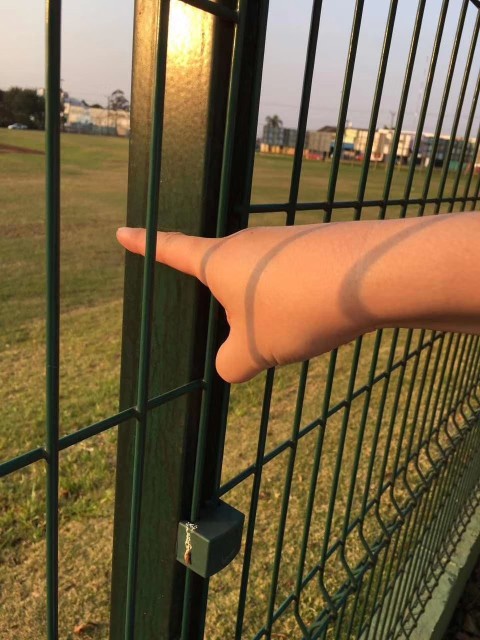

S-1: PLASTIC CLAMP

S-2: PLASTIC CLAMP

A: Metal spider clamp

B: Metal Square clamp(2pc)

C: Metal square clamp(1pc)

D: Plastic square clamp

E: Plastic Round clamp

F: Metal Round clamp
  G  SURFACE TREATMENT(ANTI-RUST TREATMENT):

1. Electric Galvanized(6-12g/m²) + Powder Coated

2. Electric Galvanized(6-12g/m²) + PVC Coated

3. Hot Dipped galvanized(40-60g/m²) + Powder Coated

4. Hot Dipped galvanized(40-60g/m²) + PVC Coated

5. Hot Dipped Galvanized after welding (More than 200g/m²)

6. Galfan(200g/m²) + Polyester Powder Coated (All colors in Ral) G. Galfan(200g/m²) + PVC Coated

Prepare Materials and Tools

Materials: Fencing mesh, metal posts, connectors (such as bolts), bases, and brackets.

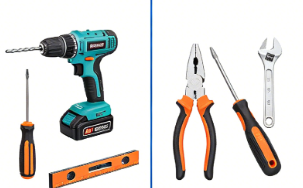

Tools: Screwdriver, electric drill, pliers, spirit level, etc.

Step 1: Install the Posts

• Dig holes on the ground where the posts will be placed (about 60-100 cm deep), then place the metal posts in the holes, ensuring they are upright.
• Use cement to secure the posts in place.
•

Step 2: Attach the Fencing Mesh

• Align the edges of the fencing mesh with the installed posts and connect the mesh to the posts.
• Use special clamps or connectors to secure the mesh to the posts firmly. Adjust the height of the mesh as needed.

Step 3: Secure Each Mesh Section

• At each connection point, use bolts, hooks, or other connectors to ensure the stability of the mesh.
•

Step 4: Check and Adjust

• After installation, ensure that the mesh is securely fixed to the posts. Use a spirit level to check that the posts and mesh are upright.
• If necessary, adjust the tightness of the connectors.

Step 5: Complete the Installation

• Finally, check the fence to make sure it is tightly secured, with no loose parts.
• If necessary, add decorative strips or other accessories to the top or bottom of the fence.
