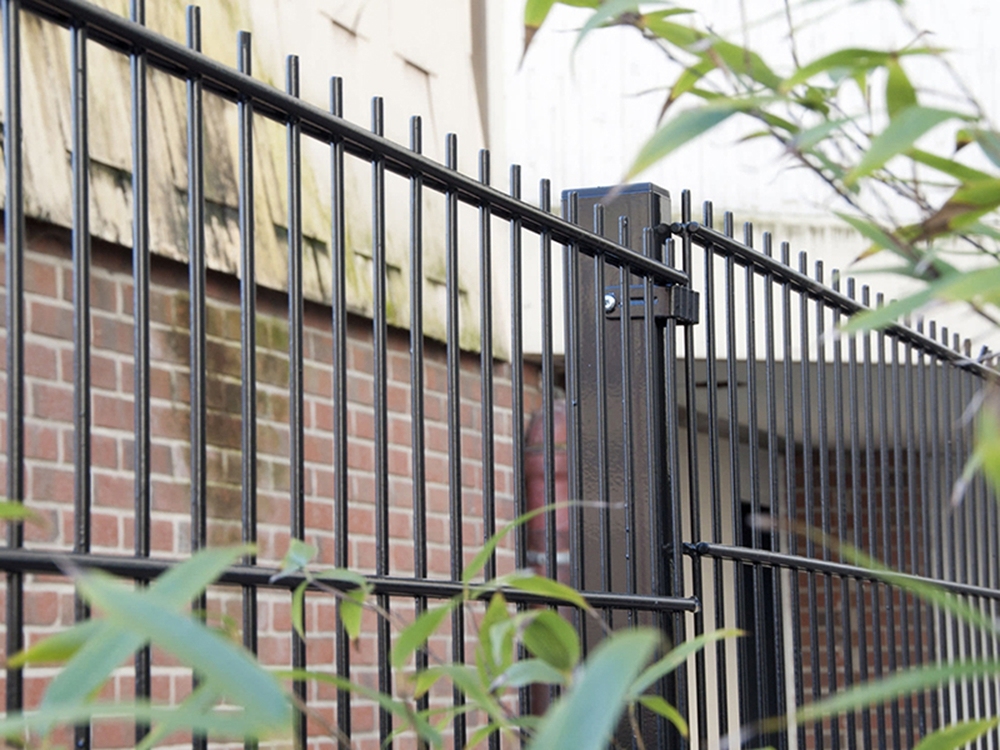

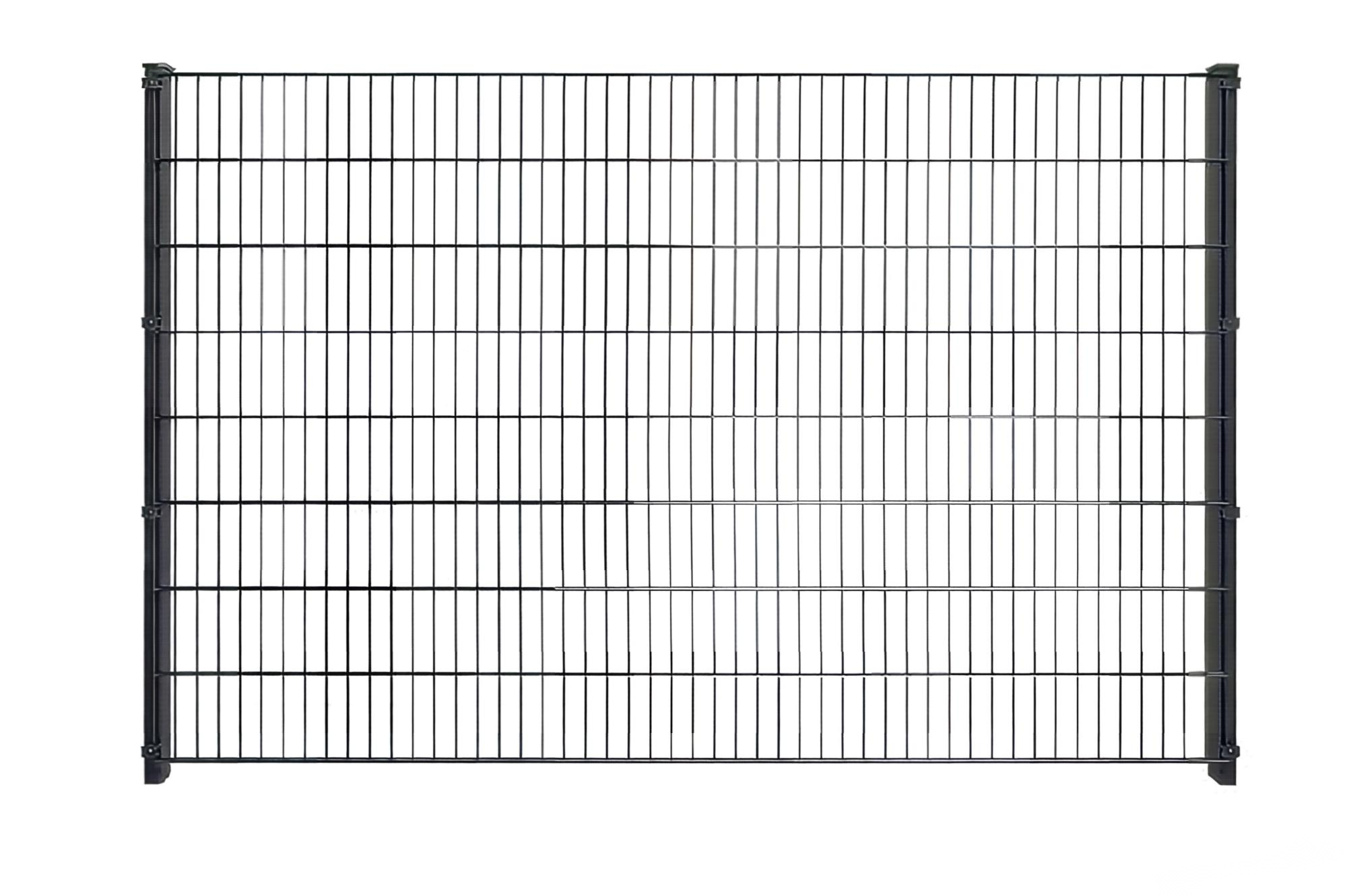

2D FENCE

INTORDUCTION

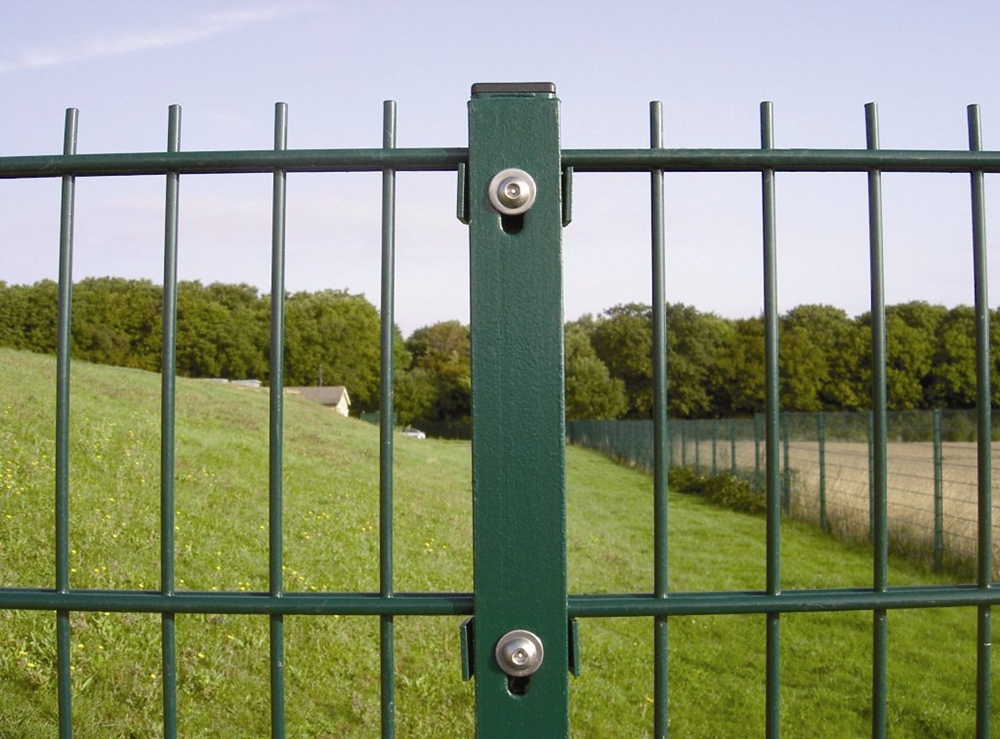

Dual-Reinforced Structure

Constructed with two parallel horizontal wires welded to vertical wires, creating a "double wire" configuration. This design significantly boosts panel rigidity and impact resistance, ensuring the fence remains sturdy and deformation-resistant.

High-Security Protection

Featuring a tight rectangular mesh structure, it effectively prevents climbing and penetration. The smooth surface is free of burrs, ensuring safety while preventing accidental scratches.

Superior Corrosion Resistance

Typically made from low-carbon steel wire that is hot-dipped galvanized and then coated with high-pressure electrostatic powder (PVC/PE). This dual-layer protection offers exceptional weather resistance against acid rain and salt spray, guaranteeing a long service life.

COLOR AVAILABLE

POPULAR COLOR IN MARKET

WELDED FENCE COLOR AVAILABLE

APPLICATION

Typical Applications

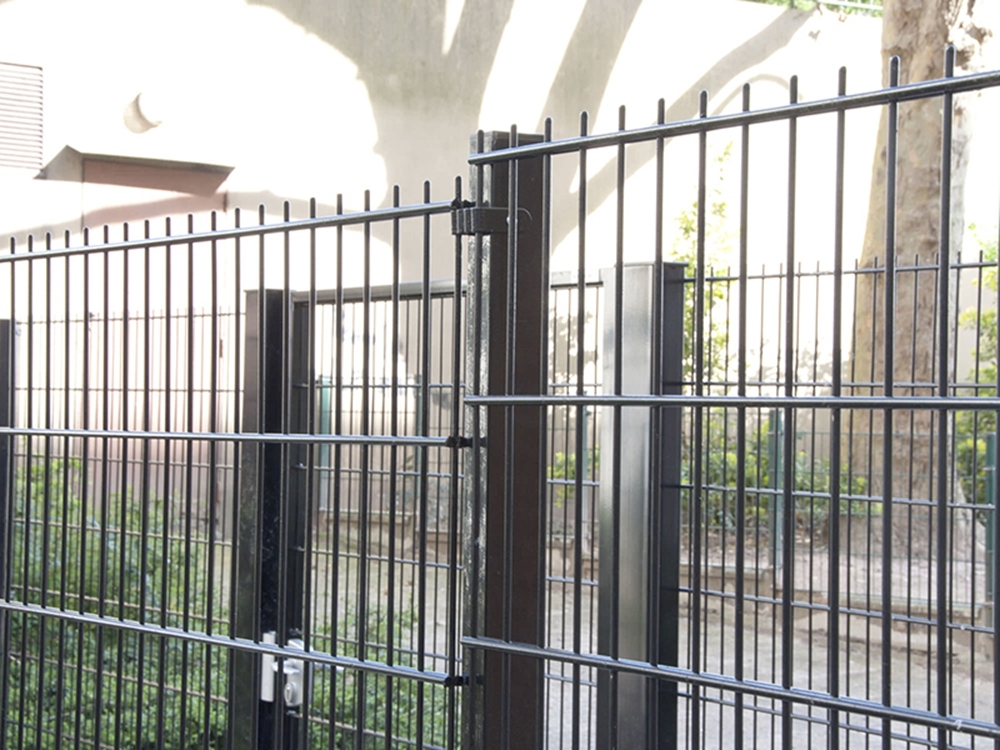

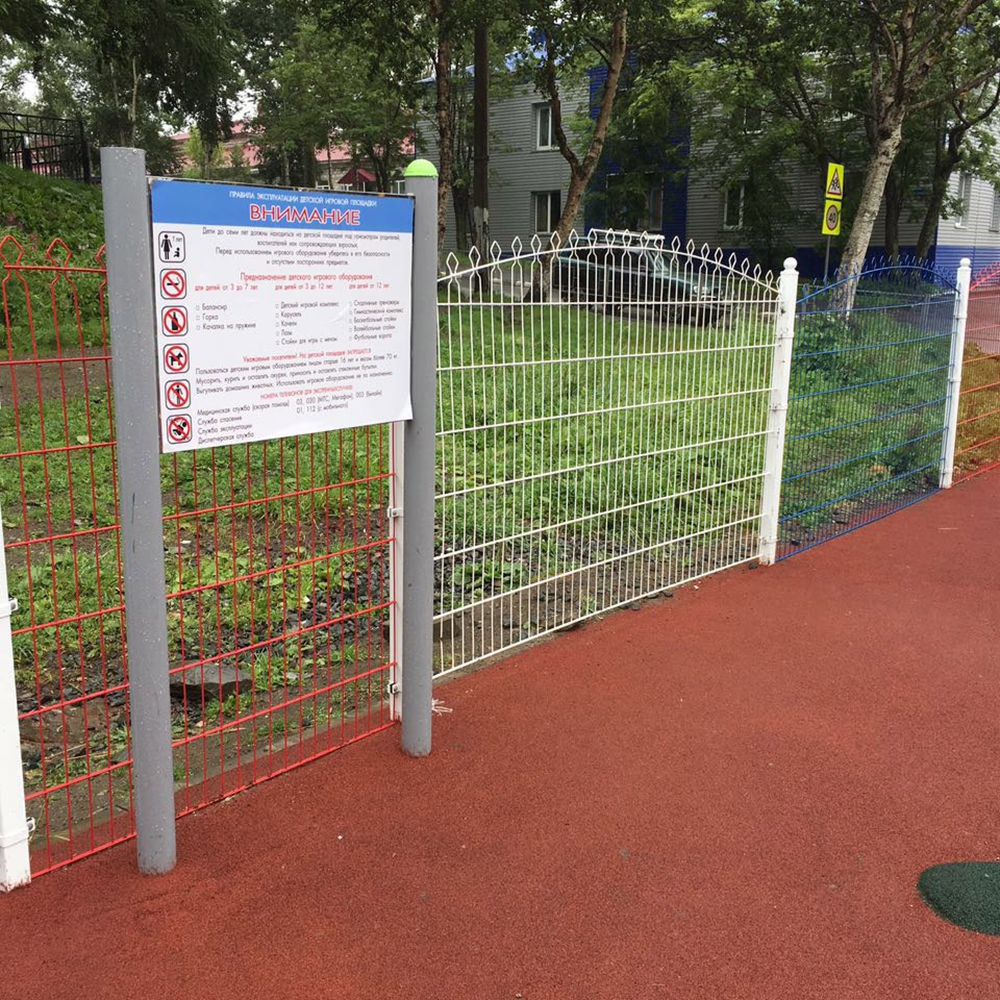

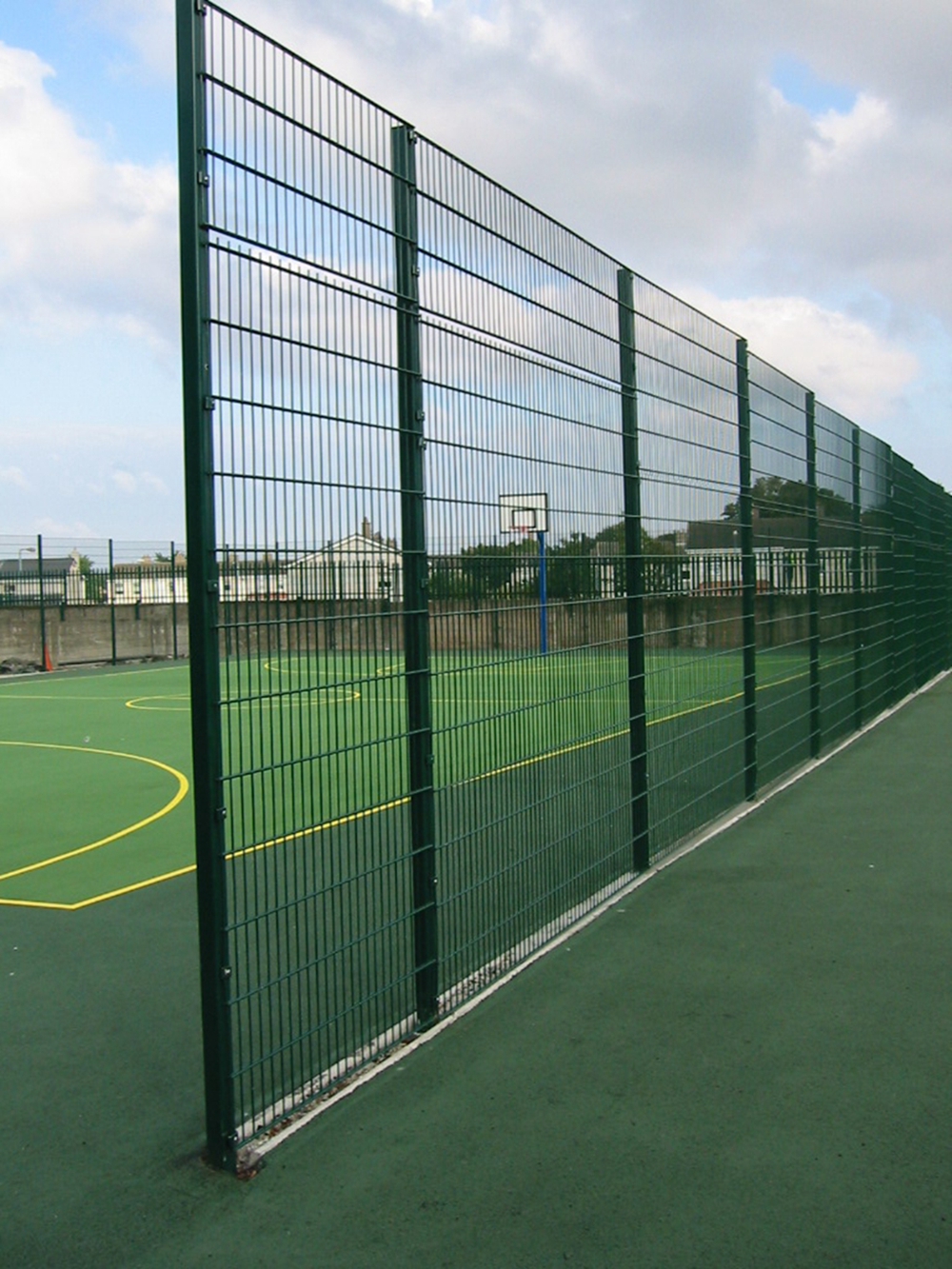

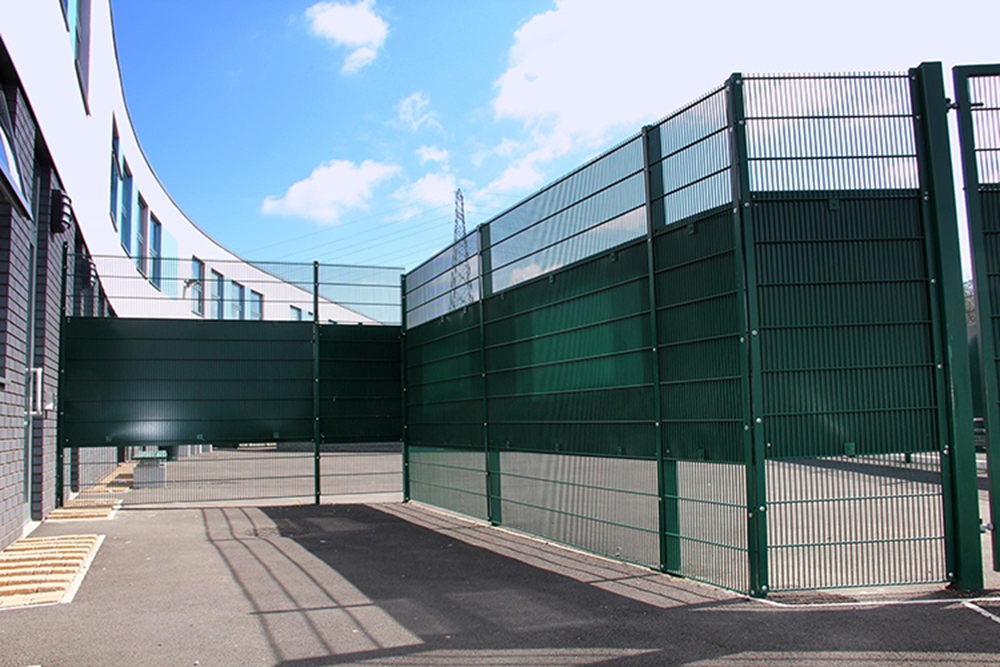

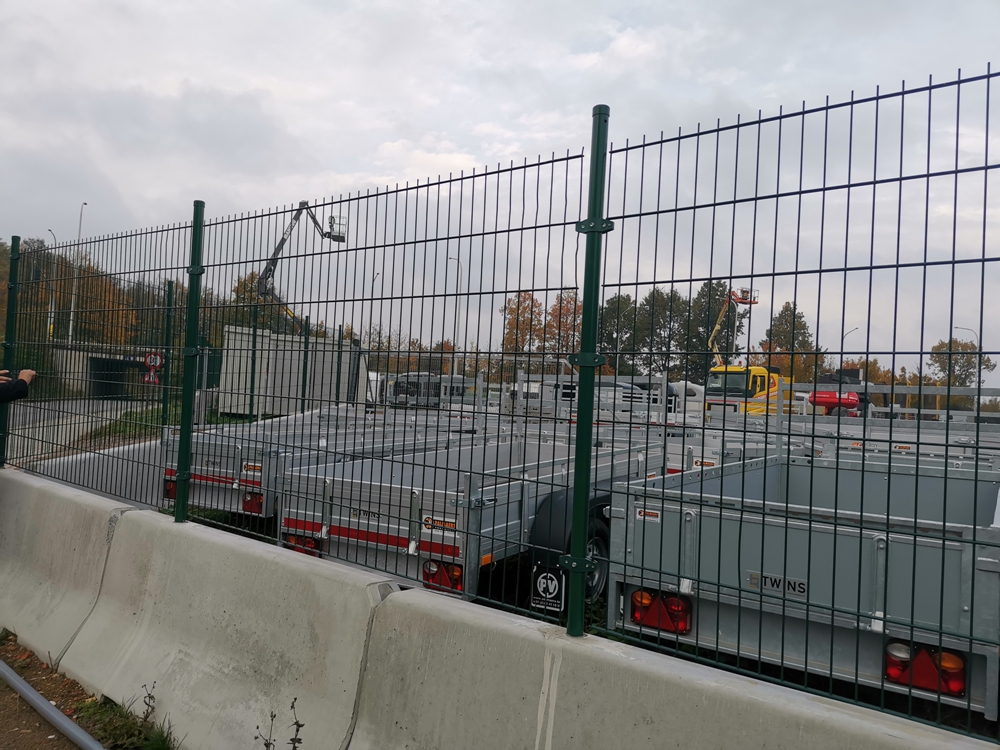

Residential compounds and villa perimeters	Industrial parks and warehouse partitions	Schools and sports field enclosures	Protective barriers along highways and railways

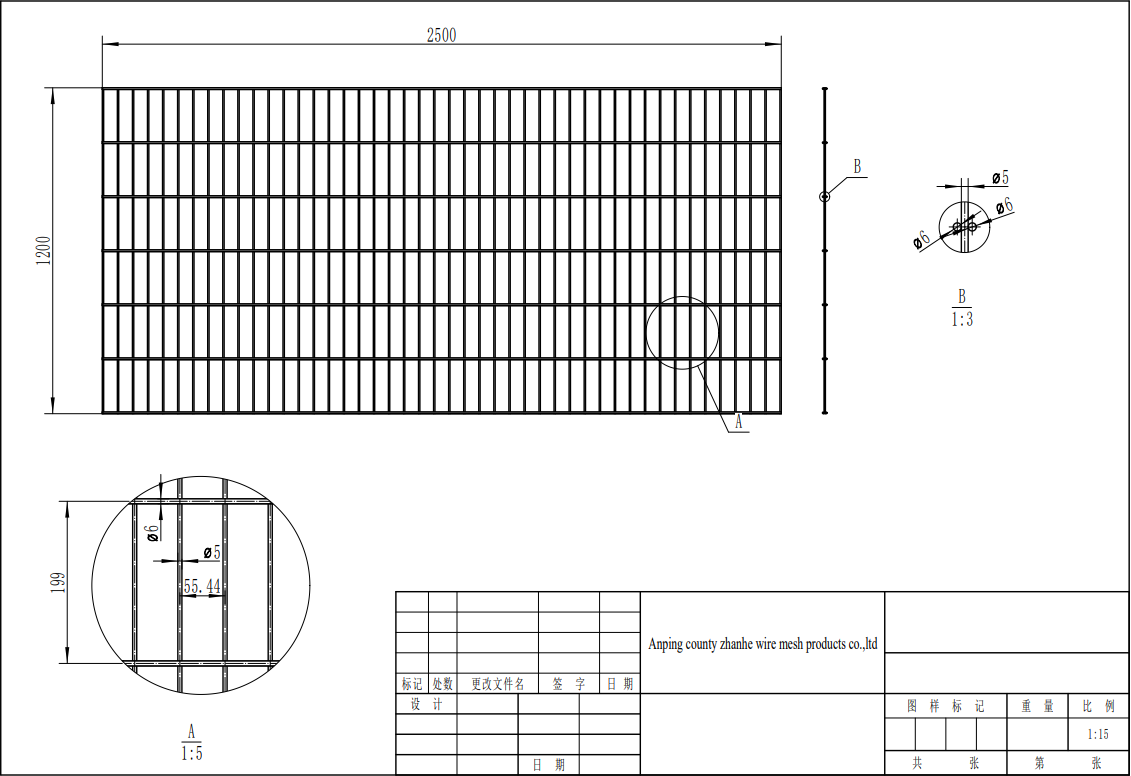

  A  HEIGHT:1030mm / 1230mm / 1430mm / 1630mm / 1830mm / 2030mm / 2230mm The Experience ultimate peace of mind with our double horizontal wire panels. The reinforced twin-wire construction provides superior stability and impact resistance, giving you a secure and worry-free boundary that stands the test of time.

  B  WIDTH: 2000mm / 2200mm / 2500mm/3000mm

3000mm option can reduce installation post cost

  C  WIRE THICKNESS: 6/5/6mm,5/4/5mm,8/6/8mm more thicker wire can offer stronger rigid

MESH SIZE: 50 × 200 mm, 55 × 200 mm

  D  NO BEND

1. Rectangle post: 40*60mm
2. Square post: 60*60mm
3. Peach post: 50*70mm & 70*100mm

  F  CONNECTIONS

A: PLASTIC CLAMP

B:  Metal clip

C: PEACH POST

D: FLAT BAR CLAMPS

SURFACE TREATMENT(ANTI-RUST TREATMENT):

1. Electric Galvanized(6-12g/m²) + Powder Coated
2. Electric Galvanized(6-12g/m²) + PVC Coated
3. Hot Dipped galvanized(40-60g/m²) + Powder Coated
4. Hot Dipped galvanized(40-60g/m²) + PVC Coated
5. Hot Dipped Galvanized after welding (More than 200g/m²)
6. Galfan(200g/m²) + Polyester Powder Coated (All colors in Ral) G. Galfan(200g/m²) + PVC Coated

Installation Steps

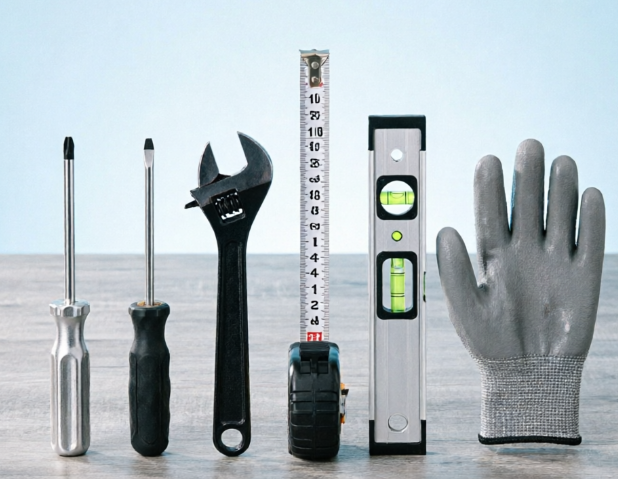

Prepare a Phillips screwdriver, a flat-head screwdriver, a wrench (select the appropriate size according to the product), a tape measure, a level (optional), and gloves (to prevent scratches).

Step1  ：

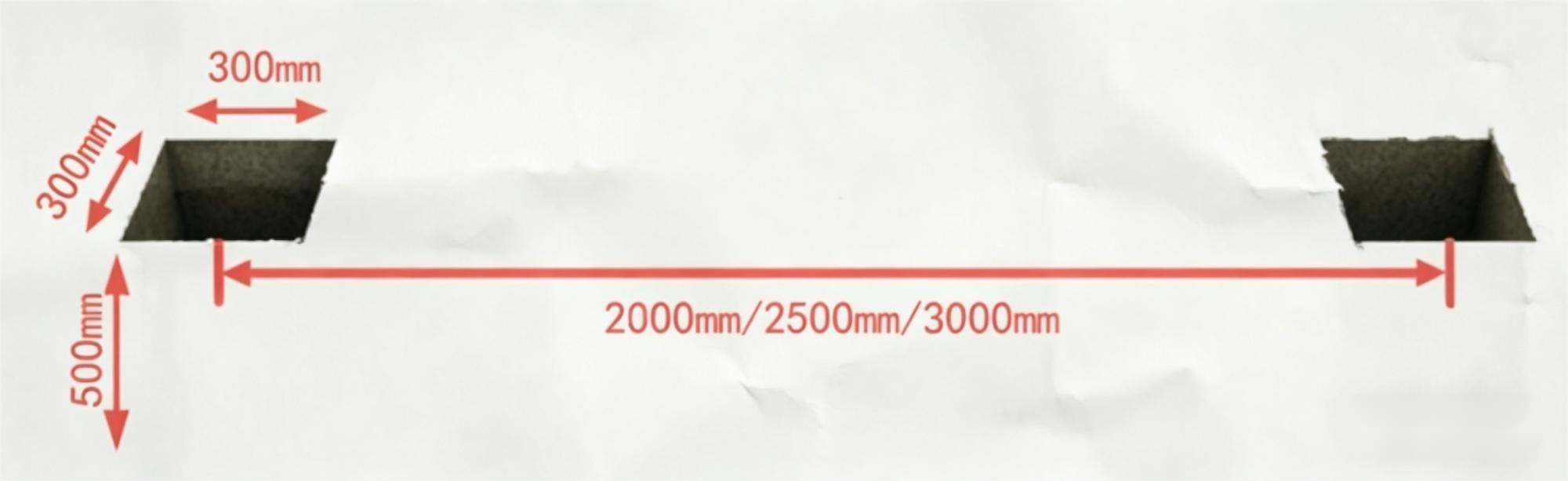

1. Layout and Excavation: Measure and mark post locations strictly according to panel width, then excavate post holes.

2. Post Specifications: Generally, posts should be 500mm longer than the panel height to accommodate burial. Therefore, a hole dimension of 300mm × 300mm × 500mm is recommended.

Step 2:

Install posts in concrete foundations, ensuring precise vertical alignment (plumb).

Posts shall be set in concrete and maintained in a perfectly plumb position during curing.

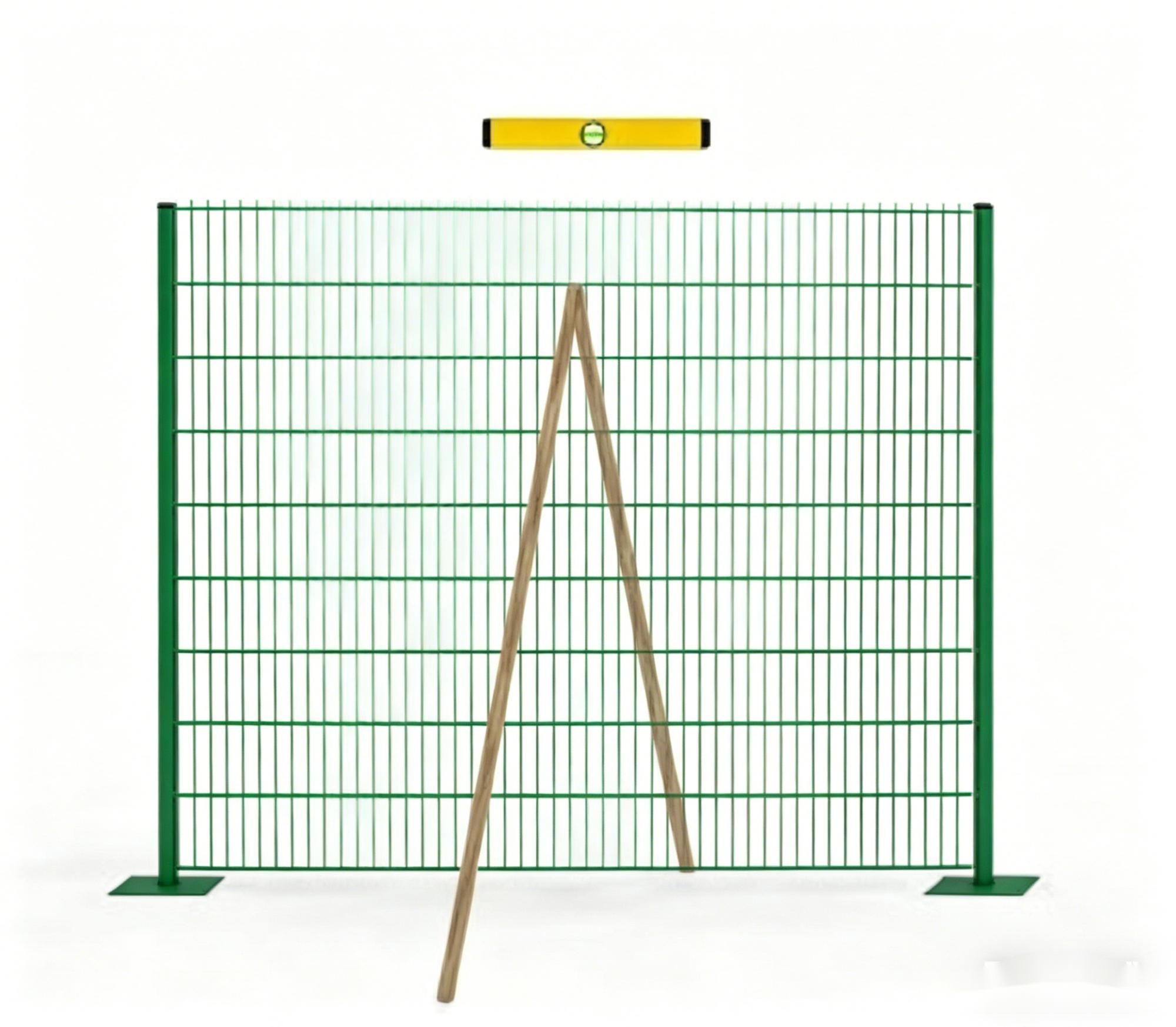

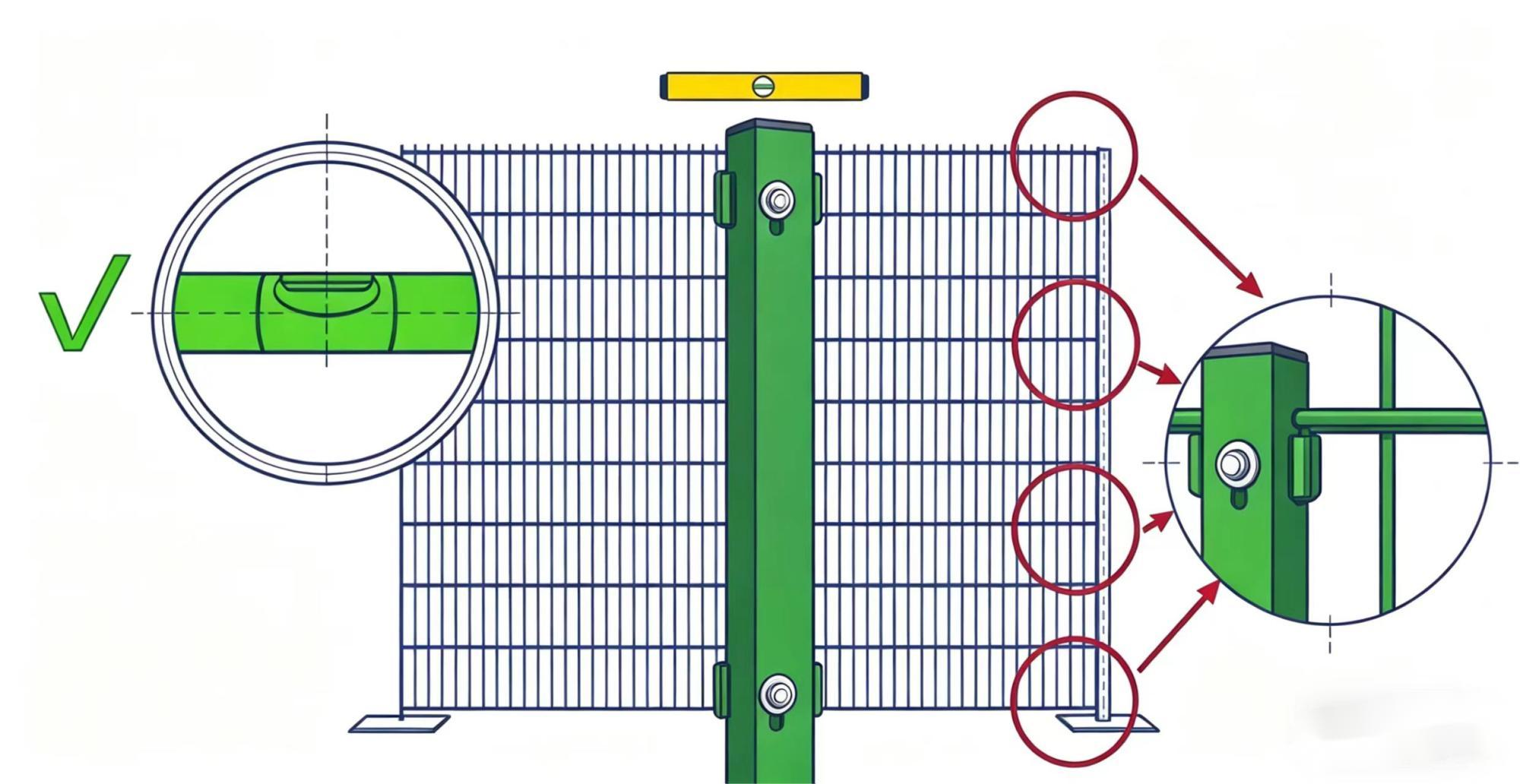

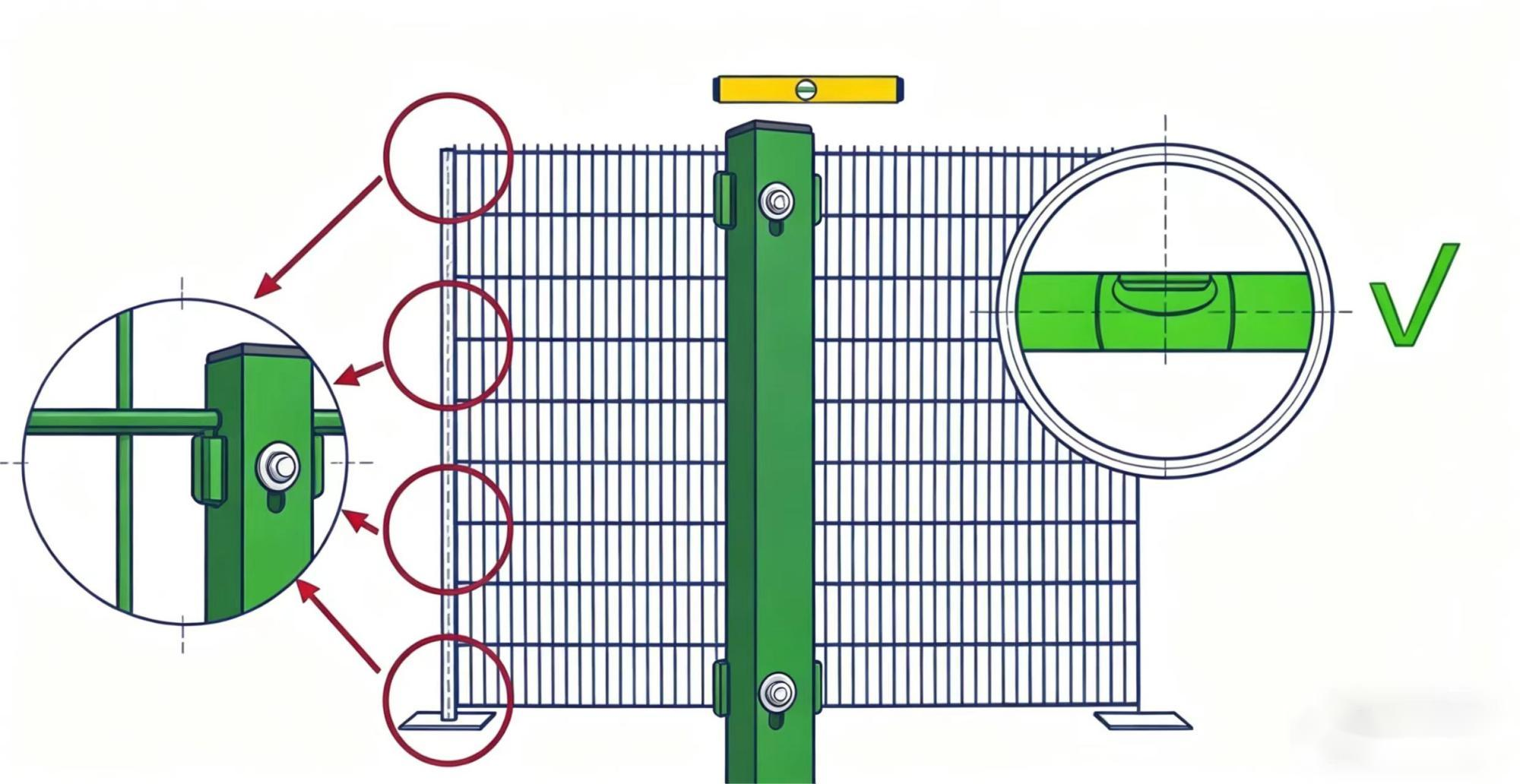

Step 3:Install 1 panel to post with clips and flat bar
